Satellit 1904

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Satellit		482	Schichau, Elbing, Germany	1/1892	21.9.1892	6/1893	to France 1920

Technical data

Displacement normal, t	540
Displacement full, t	616
Length, m	68.9 oa 67.2 pp
Breadth, m	8.10
Draught, m	2.40
No of shafts	2
Machinery	2 VTE, 4 Schulz-Thornycroft boilers
Power, h. p.	4000
Max speed, kts	23
Fuel, t	coal
Endurance, nm(kts)	4000(10)
Armament	1 x 1 - 66/37 SFK L/42 S, 6 x 1 - 47/40 SFK L/44 H, 1 - 450 TT (bow), 1 x 1 - 450 TT
Complement	86

Standard scale images

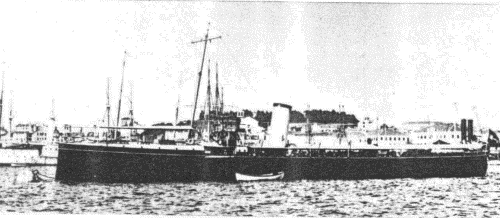

Graphics

Project history

Officially classified as "torpedo ship".

Modernizations

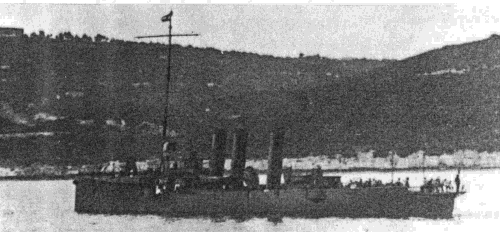

1913: boilers were replaced by 3 Yarrow (with 3 funnels) (4000hp, 21.9kts, 2000(10)nm); + mines

Naval service

No significant events.
