METEOR torpedo gunboat (1889)





Meteor Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Meteor   342 Schichau, Elbing, Germany 1886 16.6.1887 1889 to Italy 1920


Technical data


Displacement normal, t

350

Displacement full, t436
Length, m

57.0 pp

Breadth, m

6.80

Draught, m

2.60

No of shafts1
Machinery1 VTE, 2 locomotive boilers
Power, h. p.

2600

Max speed, kts

21

Fuel, t

coal

Endurance, nm(kts)2200(10)
Armament

9 x 1 - 47/30 SFK L/33 H, 1 - 450 TT (bow), 1 x 1 - 450 TT

Complement

60



Standard scale images

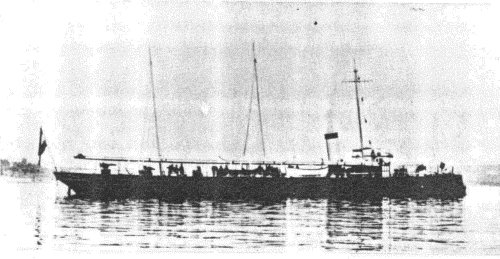

<i>Meteor </i>1887
Meteor 1887


Graphics


<i>Meteor</i> <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Meteor Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Officially classified as "torpedo ship".

Modernizations

None.

Naval service

No significant events.

Many thanks to Wolfgang Stöhr for additional information on this page.
