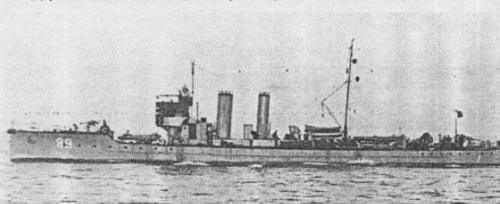

89F 1917 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
82F		51	Danubius, Porto Ré	10/1913	11.8.1914	8/1916	to Romania 1920 (Năluca)
83F		52	Danubius, Porto Ré	11/1913	7.11.1914	8/1915	to Romania 1920 (Zmeul)
84F		53	Danubius, Porto Ré	11/1913	21.11.1914	11/1916	to Romania 1920 (Fulgerul)
85F		54	Danubius, Porto Ré	1/1914	5.12.1914	12/1915	to Portugal 1920 (Zêzere)
86F		55	Danubius, Porto Ré	1/1914	19.12.1914	5/1916	to Portugal 1920 (Ave)
87F		56	Danubius, Fiume-Bergudi	3/1914	20.3.1915	10/1915	to Yugoslavia 1920 (T5)
88F		57	Danubius, Fiume-Bergudi	3/1914	24.4.1915	11/1915	to Portugal 1920 (Cávado)
89F		58	Danubius, Fiume-Bergudi	5/1914	12.5.1915	3/1916	to Portugal 1920 (Sado)
90F		59	Danubius, Fiume-Bergudi	9/1914	28.5.1915	8/1916	to Portugal 1920 (Liz)
91F		60	Danubius, Fiume-Bergudi	11/1914	21.6.1915	7/1916	to Portugal 1920 (Mondêgo)
92F		61	Danubius, Porto Ré	11/1914	29.9.1915	3/1916	to Greece 1920 (Πανόρμος [Panormos])
93F		62	Danubius, Fiume-Bergudi	1/1915	25.11.1915	4/1916	to Yugoslavia 1920 (T6)
94F		63	Danubius, Porto Ré	1/1915	8.3.1916	6/1916	to Greece 1920 (Προύσσα [Proussa])
95F		64	Danubius, Porto Ré	2/1915	24.6.1916	9/1916	to Greece 1920 (Πέργαμος [Pergamos])
96F		65	Danubius, Porto Ré	2/1915	7.7.1916	11/1916	to Yugoslavia 1920 (T7)
97F		66	Danubius, Fiume-Bergudi	3/1915	20.8.1916	12/1916	to Yugoslavia 1920 (T8)

Technical data

Displacement normal, t	266
Displacement full, t	330
Length, m	58.5 wl 57.8 pp
Breadth, m	5.80
Draught, m	1.50
No of shafts	2
Machinery	2 AEG steam turbines, 2 Yarrow boilers
Power, h. p.	5000
Max speed, kts	28
Fuel, t	coal 18 + oil 24
Endurance, nm(kts)	1200(16)
Armament	2 x 1 - 66/27 G. L/30 K.09, 1 x 1 - 8.80, 2 x 2 - 450 TT, 10 - 12 mines
Complement	38

Standard scale images

Graphics

Project history

Built at the Danubius yards in Porto Ré (Kraljevica) and Bergudi (Brgud), these boats were the Danubius version of the STT 250t boats and differed in the make of turbines and in having two funnels instead of one. Originally Danubius were to have built only four boats, but after having reduced their price by about 10% 16 boats were ordered.

Modernizations

1917, all: - 1 x 1 - 66/27; + 1 x 1 - 75/27 G. L/30 K.16 BAG

Naval service

They saw active service in the war and all boats survived. Tb 82-Tb 84 were allocated to Rumania in 1920. The Fulgerul capsized and sank on 8 February 1922 in a heavy gale in the Black Sea during her transfer to Rumania. Naluca was sunk by Soviet bombers in the harbour of Constanza in 1944 and the Zmeul was in service until 1958. Tb 85-Tb 86 and Tb 88-Tb 91 were sold to Portugal in 1920 and renamed Zezere, Ave, Cavado, Sado, Liz and Mondego. Zezere and Cavado ran aground between Tunis and Algier on 29 December 1921 while being towed to Portugal. Liz was stricken in 1934, Mondego in 1938, Sado in 1940, while Ave ran aground and was lost in the same year. Tb 92 was sold to Greece in 1920 and renamed Panormos, as were Tb 94 and Tb 95, which were renamed Proussa and Pergamos. Panormos was stranded in 1928 and sunk; Proussa was hit by German bombs on 4 April 1941 and scuttled, while Pergamos was scuttled on 25 April 1941 when laid up for repairs in me Greek Navy yard at Salamis. Tb 87 was allocated to Yugoslavia in 1920 and was renumbered T 5, as were Tb 93 which became T 6, Tb 96 which became T 7 and Tb 97 which became T 8. All were taken over without changing their designations by the Italian Navy in April 1941; T 6 was scuttled on 11 September 1943; T 8 was sunk on 10 September 1943 by German bombers; the other two became part of the navy of the independent Croatian stale; T 7 stranded after a naval action with a British MTB on 25 June 1944 and was lost, while T5 served as Cer in the Yugoslavian Navy until 1963.
