TIGER light cruiser (1888)

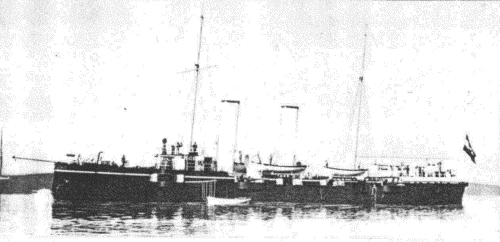

Tiger 1894 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Tiger, 1906- Lacroma   217 STT, San Rocco 5.10.1886 28.6.1887 3/1888 yacht 1906, stricken 1915


Technical data


Displacement normal, t

1657

Displacement full, t
Length, m

76.0 oa 74.2 wl

Breadth, m

10.6

Draught, m

4.30

No of shafts

2

Machinery

2 VC, 6 cylindrical boilers

Power, h. p.

5700

Max speed, kts

18.6

Fuel, t

coal 300

Endurance, nm(kts)2500(10)
Armour, mmsteel; deck: 12
Armament

4 x 1 - 120/31 G. L/35 C.87, 6 x 1 - 47/40 SFK L/44 H, 4 x 5 - 47/22 SFK L/25 H, 4 - 350 TT (1 bow, 2 beam, 1 stern)

Complement

188



Standard scale images


<i>Tiger </i>1888
Tiger 1888


Graphics


<i>Tiger </i>1894 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Tiger 1894 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Tiger was an enlarged and improved version of the Bntish-built Panther class.

Ship protection

Steel deck had 12mm thickness.

Modernizations

1906: was armed with only 6 x 1 - 47/40 SFK L/44 H

Naval service

In 1905/6 Tiger was converted into an admiralty yacht, her main armament was removed and she was renamed Lacroma. In 1915 she was completely disarmed; 1918 she became Yugoslavian, and in 1920 she was ceded to Italy and scrapped there.

Many thanks to Wolfgang Stöhr for additional information on this page.
