SAÏDA corvette (1879)





Saïda

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Saïda     Marinearsenal Pola 9/1876 2.7.1878 14.8.1879 stricken 2.1906


Technical data


Displacement normal, t

2662

Displacement full, t
Length, m

79.4

Breadth, m

13.1

Draught, m

5.83 mean 6.11 full load

No of shafts

1

Machinery

1 2-cyl HSE, cylindrical boilers

Power, h. p.

1790

Max speed, kts

12

Fuel, t

coal 270

Endurance, nm(kts)
Armament

11 x 1 - 149/24 G. L/26 C.78, 1 x 1 - 66/16 G. L/18

Complement

333 - 359

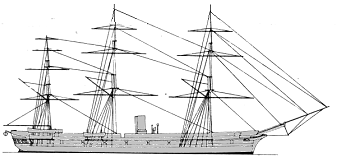

Standard scale images


<i>Saïda</i><i> </i> 1879
Saïda 1879

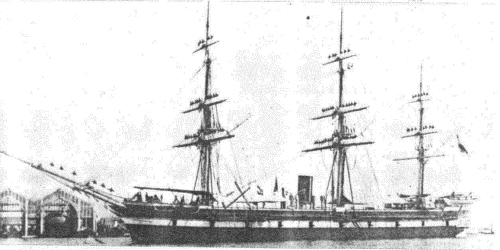

Graphics


<i>Saïda</i>
Saïda


Project history

Typical screw corvette.

Modernizations

1892: + 2 x 5 - 25/41 Nordenfelt

1904: - 3 x 1 - 149/24, 2 x 5 - 25/41; + 2 x 1 - 47/30 SFK L/33 H

Naval service

Saïda was stricken on 26.2.1906. In 1908 her engines were removed and she served as a mine storage ship. In 1912 she was renamed Minerva when her name was needed for a new light cruiser, and in 1920 she was ceded as war reparation to Italy and scrapped.
