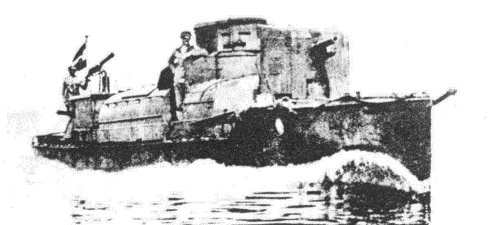

Linz 1916

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
Linz	Linz Werft: Linz	1915: Linz	none	none	after 1918: Linz

Technical data

Displacement normal, t	27
Displacement full, t
Length, m	18.5
Breadth, m	3.20
Draught, m	1.70
No of shafts	2
Machinery	2 petrol engines
Power, h. p.	220
Max speed, kts	14
Fuel, t	petrol
Endurance, nm(kts)
Armour, mm	side: 5, CT: 10
Armament	1 x 1 - 66/16 G. L/18, 3 x 1 - 8.80
Complement	8

Graphics

Project history

Built for the Army and served on the Danube until 1915.

Ship protection

Splinter protection only.

Modernizations

1917: - 1 x 1 - 8.80; + 1 x 1 - 37/42 C.1900V

Naval service

In 1915 Linz was transferred by Army to the Navy.
