FIGHTING SHIPS OF THE WORLD
AUSTRIA-HUNGARY
COASTAL FORCES
E river patrol boats (1908-1910)
h 1914
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
e f, 1916- Stör, 1917- PM.1 g h, 1916- Lachs, 1917- PM.2 |
Yarrow, Glasgow, UK: e, f Ganz & Danubius, Újpest: g, h |
10/1908: e, f 4/1910: g, h |
g (9.9.1914) |
none |
6/1913: e 1918: PM.1, 2 |
Technical data
| Displacement normal, t | 12 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 18.3 |
| Breadth, m | 2.70 |
| Draught, m | 0.80 |
| No of shafts | 3 |
| Machinery | 3 Napier petrol engines |
| Power, h. p. | 350 |
| Max speed, kts | 22 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armour, mm | side: 5, deck: 2, CT: 5 |
| Armament | 2 x 1 - 8.80 |
| Complement | 7 |
Graphics

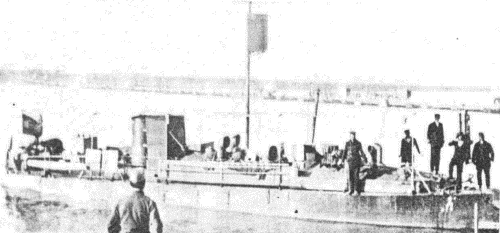

h 1914
Project history
River patrol boats.
Ship protection
Splinter protection only.
Modernizations
1917, PM.1, 2: - 1 x 1 - 8.80; + 1 x 1 - 37/42 C.1900V
Naval service
PM.1 and 2 were transferred by railway to Adriatic in 1917.
