C river patrol boats (1909)
c and d 1909
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
c d |
Schiffswerft Lustenau: c, d |
6/1909: c, d |
c (15.5.1915), d (9.9.1914) |
none |
none |
Technical data
| Displacement normal, t | 39 |
|---|---|
| Displacement full, t | |
| Length, m | 30.0 |
| Breadth, m | 4.30 |
| Draught, m | 0.70 |
| No of shafts | 2 |
| Machinery | 2 petrol engines |
| Power, h. p. | 600 |
| Max speed, kts | 14 |
| Fuel, t | petrol |
| Endurance, nm(kts) | |
| Armour, mm | side: 5, deck: 3 |
| Armament | 2 x 1 - 8.80 |
| Complement | 12 |
Graphics

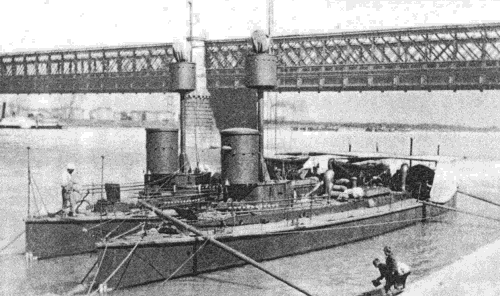

c and d 1909
Project history
River patrol boat
Ship protection
Splinter protection only.
Modernizations
None.
Naval service
No significant events.
