ERZHERZOG KARL battleships (1906-1907)

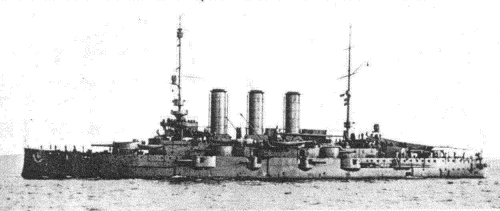

Erzherzog Karl 1910 Many thanks to Wolfgang Stöhr for additional information on this page.

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Erzherzog Karl   341 STT, San Marco 24.7.1902 4.10.1903 17.6.1906 to France 1920, BU
Erzherzog Friedrich   342 STT, San Marco 4.10.1902 30.4.1904 31.1.1907 to France 1920, BU
Erzherzog Ferdinand Max   347 STT, San Marco 9.3.1904 21.5.1905 21.12.1907 to United Kingdom 1920, BU


Technical data


Displacement normal, t

10472

Displacement full, t
Length, m

126.2 oa 124.4 wl

Breadth, m

21.8

Draught, m

7.51

No of shafts

2

Machinery

2 4-cyl VTE, 18 Yarrow boilers

Power, h. p.

18000

Max speed, kts

20.5

Fuel, t

coal 1315

Endurance, nm(kts)4500(10)
Armour, mmbelt: 210, turrets: 240, casemates: 150, bulkheads: 200, deck: 55, CT: 220
Armament

2 x 2 - 238/37 G. L/40 S., 12 x 1 - 190/40 G. L/42, 12 x 1 - 66/42 SFK L/45, 4 x 1 - 47/40 SFK L/44 S, 2 x 1 - 47/30 SFK L/33 H, 4 x 1 - 37/42 C.1900V, 4 x 1 - 8.80, 2- 450 TT (beam)

Complement

638



Standard scale images

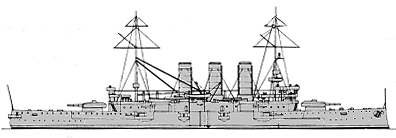

<i>Erzherzog Karl </i>1906
Erzherzog Karl 1906


Graphics


<i>Erzherzog Karl </i>1910 <i>Many thanks to Wolfgang Stöhr for additional information on this page.</i>
Erzherzog Karl 1910 Many thanks to Wolfgang Stöhr for additional information on this page.


Project history

Because of the limits of docks and tight naval budgets, the three pre-dreadnoughts of the Erzherzog Karl class were very compact, well-protected battleships, although they were inferior to their contemporaries in other navies. For the first time the secondary armament was concentrated in fully electric powered turrets.

Ship protection

Main 210mm belt extended at 67% of ship length between barbettes and from 1.4m under wl and 1.2m above and was closed by 210mm transverse bulkheads. Between the fwd barbette and the stem its thickness was 50mm. Upper 120mm belt between barbettes was closed by 120mm bulkheads. 19cm battery consisted of individual casemates with 170mm sides and 35mm inner bulkheads, connected by 130mm side armour. Battery was closed by 170mm transverse bulkheads (130mm near the centre line). 40mm flat main deck on the upper edge of main belt level was connected with lower edge of main belt by 60mm slopes. Outside the citadel the lower deck had turtleback form and was 60mm fwd and 55mm aft. Main barbettes over the upper deck were 210mm and 120mm under the upper deck. Main turrets had 240mm faces, 200mm sides and rears and 50mm crowns, secondary turrets had 150mm faces, 120mm sides and rears and 30mm crowns. Main CT had 220mm sides and 152mm communication tube, aft CT had 120mm sides and 88mm communication tube.

Modernizations

1916, all: + 2 x 1 - 66/42 G. L/45 BAG

Naval service

All were taken over by Yugoslavia in November 1918, but Erzherzog Karl and Erzherzog Friedrich were ceded as war reparation to France in 1920 and Erzherzog Ferdinand Max to Great Britain.

Many thanks to Wolfgang Stöhr for additional information on this page.
