COLLINS attack submarines (1996-2003)

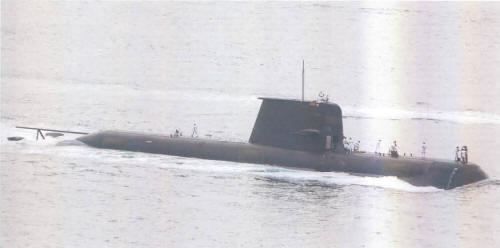

Rankin 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Collins 73   ASC, Port Adelaide 14.2.1990 28.8.1993 27.7.1996 in service (2019)
Farncomb 74   ASC, Port Adelaide 1.3.1991 15.12.1995 31.1.1998 in service (2019)
Waller 75   ASC, Port Adelaide 19.3.1992 14.3.1997 10.7.1999 in service (2019)
Dechaineux 76   ASC, Port Adelaide 4.3.1993 12.3.1998 23.2.2001 in service (2019)
Sheean 77   ASC, Port Adelaide 17.2.1994 1.5.1999 23.2.2001 in service (2019)
Rankin 78   ASC, Port Adelaide 12.5.1995 7.11.2001 29.3.2003 in service (2019)


Technical data


Displacement standard, t

2450
Displacement normal, t

3050 / 3350
Length, m

77.8
Breadth, m

7.80
Draught, m

6.80
No of shafts

1
Machinery

3 Garden Island - Hedemora 18V210B diesel-generators, 1 Jeumont-Schneider electric motor
Power, h. p.

6900 / 7000
Max speed, kts

11 / 21
Fuel, t

diesel oil
Endurance, nm(kts)

11500(10) / 480(4)
Armament

6 - 533 TT (bow, 22 (Mk 48 mod. 4), inc. Sub-Harpoon SSM (4))
Electronic equipment

73, 74: type 1007 radar, TSM 2253 Scylla, Karrawarra sonars, AR-740-US ECM suite

75: type 1007 radar, TSM 2253 Scylla, Karrawarra sonars, AR-740-US ECM suite

76-78: type 1007 radar, TSM 2253 Scylla, Karrawarra or Narama sonars, AR-740-US ECM suite, ACS CCS
Complement

42
Diving depth operational, m

300


Graphics


<i>Rankin</i> 2008
Rankin 2008


Project history

After a lengthy evaluation of foreign designs the Swedish Kockums Type 471 design was selected as a replacement for the Oberon type in the mid-1990s. Under an agreement signed in June 1987 a contract was signed between Kockums AB and the Australian Submarine Corporation (ASC) to build six boats in Adelaide, South Australia. An option for two was not taken up. Armament and fire control are US-pattern, and the sonar is French.

Modernizations

2000, Collins; 2002, Farncomb; 2003, Waller: + ACS CCS

2007, Waller; 2008, Farncomb; 2010, Dechaineux; 2011, Sheean; 2013, Rankin; 2014, Collins: Mk 48 mod. 4 torpedoes were replaced by Mk 48 mod. 7; - AR-740-US ECM suite, ACS CCS; + Condor CS5600 ECM suite, 2x SSDE decoy launchers, BYG-1(v)8 CCS

Naval service

No significant events.
