TOBRUK tank landing ship (1981)

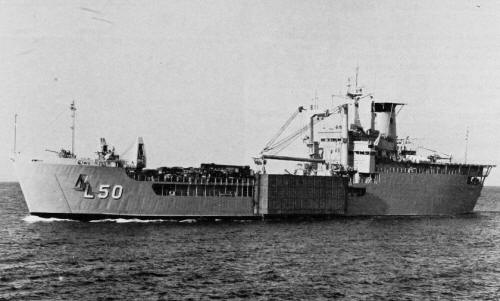

Tobruk 1983

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Tobruk L50   Carrington Slipways, Tomago 7.2.1979 1.3.1980 23.4.1981 stricken 7.2015


Technical data


Displacement standard, t3600
Displacement full, t6000
Length, m129.5
Breadth, m19.6
Draught, m4.30
No of shafts

2

Machinery

2 Mirrlees-Blackstone KDMR8 diesels

Power, h. p.

9600

Max speed, kts

17

Fuel, t

diesel oil

Endurance, nm(kts)8000(15)
Armament

2 x 1 - 40/60 Mk 3, 4 x 1 - 12.7/90, 2 helicopter platforms for Sea King or Wessex

Military load2 LCM(8), 2 LCVP, 11 tanks, 520 troops
Electronic equipmentDecca RM916, type 1006 radars, Matilda ECM suite, 2x Mk 36 SRBOC decoy RL
Complement144


Graphics


<i>Tobruk </i>1983
Tobruk 1983


Project history

A modified version of British Sir Bedivere class LSLs, but rated as an amphibious heavy lift ship. She can operate Wessex (later Sea King) helicopters, can carry pontoons and has a powerful heavy lift system: 2 4.5t cranes, 1 60t heavy-lift derrick and 14.6m bow and 14.2m stern ramps. Two LCVPs are carried in davits. Can accommodate two Astralian Army NLE pontoon lighters Castor and Pollux on the hull sides.

Modernizations

2000: - 2 x 1 - 40/60

2008: + 2 x 1 - 12.7/90 (Mini-Typhoon)

Naval service

No significant events.
