LAPATAIA troop transports (1951)


Ships


Name No Yard No Builder Laid down Launched Comm Fate
Lapataia B10   CRDA, Monfalcone, Italy 4/1948 25.6.1949 2.10.1951 stricken 6.1969
Le Maire B11   CRDA, Monfalcone, Italy 4/1948 22.10.1949 2.11.1951 sold 3.1966
Les Eclaireurs B12   CRDA, Monfalcone, Italy 4/1948 30.3.1949 2.10.1951 hulk 6.1967


Technical data


Displacement standard, t

2908

Displacement full, t3825
Length, m

103.9

Breadth, m

15.4

Draught, m

9.40

No of shafts2
Machinery

2 FIAT 2T SA diesels

Power, h. p.

3400

Max speed, kts

15

Fuel, t

diesel oil 535

Endurance, nm(kts)
Armament

none

Military load

troops

Electronic equipment
Complement71

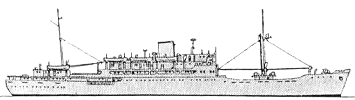

Standard scale images


<i>Lapataia </i>1965
Lapataia 1965


Project history

Troop transports with limited landing capacity.

Modernizations

None.

Naval service

No significant events.
