TONINA patrol craft (1977)





Tonina 1999

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Tonina GC47   Sanym, San Fernando     21.10.1977 in service (2019)


Technical data


Displacement standard, t103
Displacement full, t153
Length, m

25.5

Breadth, m

5.30

Draught, m

2.10

No of shafts

2

Machinery2 General Motors Detroit Diesel 16V71N 162-2000 diesels
Power, h. p.1500
Max speed, kts

11

Fuel, t

diesel oil

Endurance, nm(kts)2800(10)
Armament

1 x 1 - 20/70 Mk 10, 2 x 1 - 12.7/90

Electronic equipmentDecca 1226 radar
Complement

11



Graphics

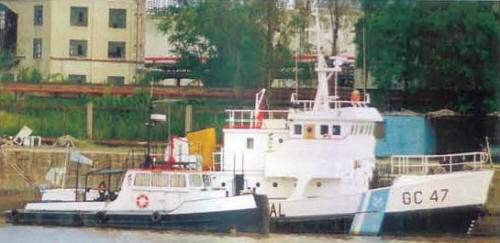

<i>Tonina </i>1999
Tonina 1999


Project history

Used as training ship and as rescue tug since 1986. Has diver's facilities including a decompression chamber.

Modernizations

None.

Naval service

No significant events.
