EL MOUDERRIB I patrol craft (1990-1991)
El Mouderrib 4 2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 1 المدرب [El Mouderrib 1] | 251 | China | 3.1990 | in service (2019) | |||
| 2 المدرب [El Mouderrib 2] | 252 | China | 3.1990 | in service (2019) | |||
| 3 المدرب [El Mouderrib 3] | 253 | China | 3.1990 | in service (2019) | |||
| 4 المدرب [El Mouderrib 4] | 254 | China | 1.1991 | in service (2019) | |||
| 5 المدرب [El Mouderrib 5] | 255 | China | 1.1991 | in service (2019) | |||
| 6 المدرب [El Mouderrib 6] | 256 | China | 7.1991 | in service (2019) | |||
| 7 المدرب [El Mouderrib 7] | 257 | China | 7.1991 | in service (2019) |
Technical data
| Displacement standard, t | 375 |
|---|---|
| Displacement full, t | 400 |
| Length, m | 58.8 |
| Breadth, m | 7.20 |
| Draught, m | 2.20 |
| No of shafts | 3 |
| Machinery | 3 12VE23 015/2 diesels |
| Power, h. p. | 6600 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(14) |
| Armament | 1 x 2 - 14.5/93 |
| Electronic equipment | type 756 radar |
| Complement | 42 |
Graphics

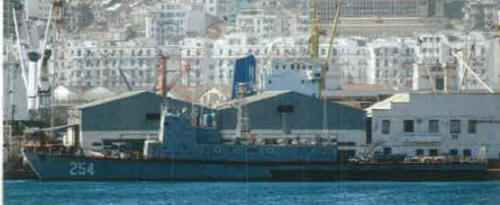

El Mouderrib 4 2006
Project history
Chinese Chui-E class, simplified version of type 037 patrol craft with enlarged superstructure and boats stowed on fantail. Can be also used as training craft for navy. Additional twin 14.5mm mount can be mounted on the fantail.
Modernizations
None.
Naval service
No significant events.
