FIGHTING SHIPS OF THE WORLD
ALGERIA
ESCORTS
RAÏS HASSEN BARBIAR corvette (2017)





Rais Hassen Barbiar 2017

Ships


Name No Yard No Builder Laid down Launched Comp Fate
رئس حسن باربار [Rais Hassen Barbiar] (ex-غرابة [Gharaba]) 807   ECRN, Mers-el-Kebir   12/2012 9.8.2017 in service (2019)


Technical data


Displacement standard, t

600

Displacement full, t
Length, m

61.7

Breadth, m

8.45

Draught, m

2.50

No of shafts

3

Machinery

3 MTU 16V595 TE90 diesels

Power, h. p.
Max speed, kts

28

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

2 x 2 C802 SSM (4 C802), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630

Electronic equipment

nav., surf./air search, GFC radars, e/o system, ECM suite, 2x 6 decoy RL

Complement


Graphics

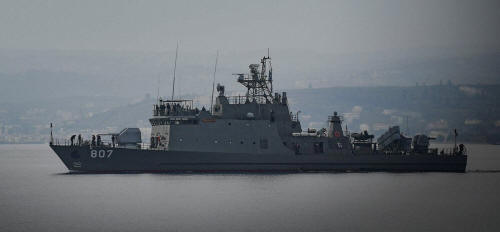

<i>Rais Hassen Barbiar </i>2017
Rais Hassen Barbiar 2017


Project history

Lengthened version of C58 design, C62, with addition ability to carry commandos.

Modernizations

None.

Naval service

No significant events.
