ADHAFER corvettes (2015-2016)
E Fatih 2016
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| أظافر [Adhafer] | 920 | Hudong, Shanghai, China | 15.8.2014 | 11/2015 | in service (2019) | ||
| الفتيه [El Fatih] | 921 | Hudong, Shanghai, China | 6.2.2015 | 10.3.2016 | in service (2019) | ||
| يزدجر [Ezzadjer] | 922 | Hudong, Shanghai, China | 2015 | 25.8.2016 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 2880 |
| Length, m | 120.0 |
| Breadth, m | 14.4 |
| Draught, m | 3.90 |
| No of shafts | 2 |
| Machinery | 4 MTU 16V1163 TB93 diesels |
| Power, h. p. | 32200 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(16) |
| Armament | 2 x 4 C802 SSM (8 C802), 1 x 8 FM-90N SAM (8 HHQ-7), 1 x 1 - 76/59 PJ-26, 2 x 7 - 30/77 type 730, 2 x 3 - 324 B515 TT, 1 helicopter (Super Lynx) |
| Electronic equipment | SMART-S Mk 2, type 364, 2x Kelvin Hughes nav., type 343G radars, sonar, ECM suite, 2x type 726-4 decoy RL, TACTICOS CCS |
| Complement |
Graphics

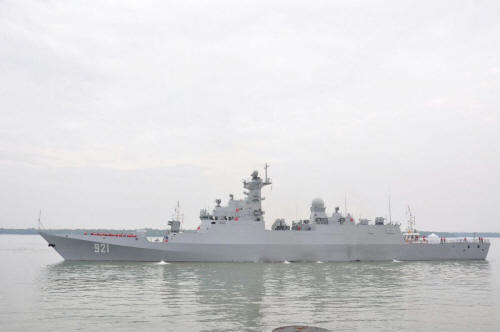

E Fatih 2016
Project history
Chinese C28A project. Ordered in 2012. 3 more ships may be built later in Algeria.
Modernizations
None.
Naval service
No significant events.
