No644 fast attack craft (missile) (1976-1979, 1970s/1981)





651 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate Modification
  644   Vympel, Rybinsk, USSR     12.1976 in service (2019) project 205ER
  645   Vympel, Rybinsk, USSR     12.1976 in service (2019) project 205ER
  646   Vympel, Rybinsk, USSR     12.1976 in service (2019) project 205ER
  647   Vympel, Rybinsk, USSR     12.1976 in service (2019) project 205ER
  648   Vympel, Rybinsk, USSR     9.1978 in service (2019) project 205ER
  649   Vympel, Rybinsk, USSR     12.1978 in service (2019) project 205ER
  650   Vympel, Rybinsk, USSR     1979 in service (2019) project 205ER
  651   Vympel, Rybinsk, USSR     1979 in service (2019) project 205ER
  652   USSR     1970s // 12.1981 in service (2019) project 205U


Technical data


Displacement standard, t

pr. 215ER: 215

pr. 205U: 192
Displacement full, t

pr. 205ER: 243

pr. 205U: 235
Length, m

38.6
Breadth, m

7.60
Draught, m

pr. 205ER: 2.00

pr. 205U: 1.84
No of shafts

3
Machinery

3 M-504B diesels
Power, h. p.

15000
Max speed, kts

42
Fuel, t

diesel oil
Endurance, nm(kts)

pr. 205ER: 1620(15)

pr. 205U: 1800(14)
Armament

4 x 1 P-15U SSM (4 P-15U), 2 x 2 - 30/71 AK-230
Electronic equipment

MR-101 Rangout, MR-104 Rys' radars
Complement

29


Standard scale images


<i>644 </i>1980
644 1980


Graphics

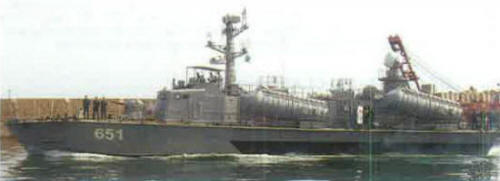

<i>651 </i>2008
651 2008


Project history

Soviet Project 205ER and 205U FACs (missile). Latter boats was transferred after service under Soviet flag to replace boat of pr. 205, lost due to explosion.

Modernizations

None.

Naval service

No significant events.
