RLM301 river minesweepers (1951-1953)





1982

Ships


Names Builders Commissioned Losses Transfers Discarding

M301-324

Mačvanska Mitrovica: M301-324

1951-1953: M301-324

none

none

1980: M301-305, 311-313

1981-1983: M315, 316

1986-1989: M306-310

1989: M317, 324

1990: M318

1991-1994: M314

1995-1999: M319-323



Technical data


Displacement standard, t
Displacement full, t

38

Length, m

19.4

Breadth, m4.40
Draught, m1.40
No of shafts

2

Machinery

2 Torpedo B536 diesels

Power, h. p.

300

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

1 x 2 - 20/80 M55 or 1 x 1 - 20/80 M55, mechanical minesweeping gear

Electronic equipment

Decca radar

Complement9

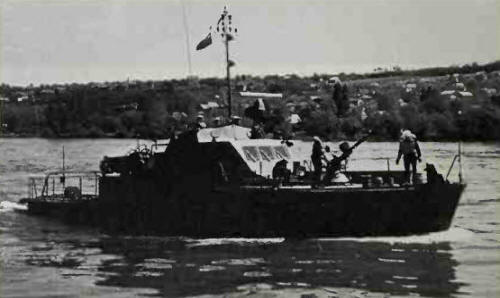

Graphics


1982
1982


Project history

Minesweeping boats for service on Danube.

Modernizations

None.

Naval service

No significant events.
