HRABRI coastal minesweepers (1957-1960)

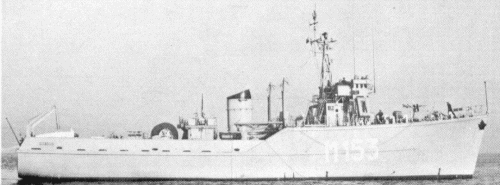

Slobodni 1966

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Храбри [Hrabri], 1976- Вуков Кланац [Vukov Klanats] M151   Normand, Le Havre, France     9/1957 captured by Croatia 9.1991 (Vukov Klanac)
Смели [Smeli], 1976- Подгора [Podgora] M152   Normand, Le Havre, France     9/1957 stricken 2004
Слободни [Slobodni], 1976- Блитвеница [Blitvenitsa] M153   Normand, Le Havre, France     9/1957 stricken 2004
Снажни [Snazhni], 1976- Градац [Gradats] M161   Mali Losinj SY     1960 stricken 1993


Technical data


Displacement standard, t

400

Displacement full, t

440

Length, m

42.7 pp 46.4 oa

Breadth, m

8.60

Draught, m

2.50

No of shafts

2

Machinery

M151-153: 2 SEMT-Pielstick diesels

M161: SIGMA free-piston gas generators, 2 Rateau-Bretagne gas turbines / 1 diesel-generator, 1 electric motor

Power, h. p.

M151-153: 2000

M161: 2000 / 500

Max speed, kts

15

Fuel, t

diesel oil 48

Endurance, nm(kts)

M151-153: 2000(15)

M161: 3000(10)

Armament

1 x 2 - 20/70 Mk 24, mechanical, acoustic and magnetic sweeping gear

Electronic equipmentDRBN-30 radar, type 193M sonar
Complement

40



Standard scale images


<i>Hrabri</i> 1975
Hrabri 1975


Graphics


<i>Slobodni </i>1966
Slobodni 1966


Project history

First three delivered under designation D25-27 to Yugoslavia under the US Offshore Procurement Scheme. The fourth craft was built with French assistance by Mali Losinj Yard.

Modernizations

1988-1990, all: - type 193M sonar; + 2 PAP-104 minehunting USV, TSM2022 sonar

Naval service

Vukov Klanats was heavily damaged in September 1991 and taken over by the Croatian Navy, but soon after was destroyed by Serbian coastal guns.
