MLET inshore minesweepers (1964-1966)

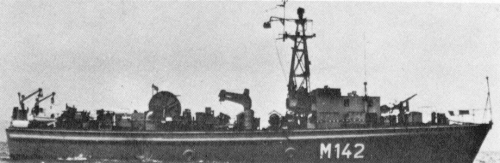

Brsech 1968

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Мљет [Mlet] M141   Yugoslavia     1964 deleted 2003
Брсеч [Brsech] M142   Yugoslavia     1964-66 deleted 1996
Иж [Izh] M143   Yugoslavia     1964-66 to Croatia 1991 (Iž)
Олиб [Olib] M144   Yugoslavia     1966 deleted 1992


Technical data


Displacement standard, t

123

Displacement full, t

164

Length, m

30.5 pp 32.4 oa

Breadth, m

6.45

Draught, m

1.70

No of shafts

2

Machinery

2 Davey Paxman YHAXM diesels

Power, h. p.

1100

Max speed, kts

14

Fuel, t

diesel oil 15

Endurance, nm(kts)2000(9)
Armament

1 x 1 - 40/60 Mk 3, LL mechanical/magnetic/acoustic minesweeping gear

Electronic equipment

Decca 45 radar

Complement

22



Standard scale images


<i>Brsech </i>1980
Brsech 1980


Graphics


<i>Brsech </i>1968
Brsech 1968


Project history

License British 'Ham' class, built under the MS MDAP.

Modernizations

None.

Naval service

No significant events.
