FIGHTING SHIPS OF THE WORLD
YUGOSLAVIA / SERBIA
AMPHIBIOUS FORCES
LUBIN multipurpose transports (1984)





Lubin 2003

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Лубин [Lubin] ПО91 [PO91]   Brodosplit, Split     1984 to Montenegro 2006 (Lubin)
Угор [Ugor] ПО92 [PO92]   Brodosplit, Split     1984 stricken 1992
Кит [Kit] ПО93 [PO93]   Brodosplit, Split     1984 stricken 2000


Technical data


Displacement standard, t

600

Displacement full, t

882

Length, m

58.2

Breadth, m

11.0

Draught, m

2.75 mean

No of shafts

2

Machinery

2 diesels

Power, h. p.

3480

Max speed, kts

16.2

Fuel, t

diesel oil

Endurance, nm(kts)1500(14.3)
Armament

2 x 1 Strela-2M SAM (some 9K32), 1 x 1 - 40/60 Mk 3, 1 x 4 - 20/90 M-75

Military load

150 troops, 6 tanks

Electronic equipmentnav. radar
Complement

34



Graphics

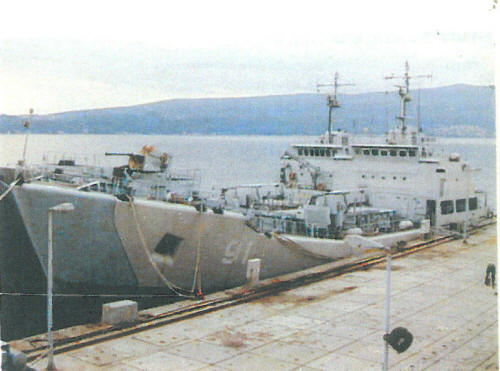

<i>Lubin </i>2003
Lubin 2003


Project history

PO means Pomocni Oruzar (Ammunition Auxiliary). Intended to supply combatants with missiles, torpedoes, mines and other. Continuous cargo deck can accommodate tanks. Had extendable bow ramp and two cranes. As ammunition transports can carry 20 torpedoes or 40 sea mines.

Modernizations

None.

Naval service

No significant events.
