DJČ621 landing craft (1983-1987)
DJČ412 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ДJЧ621 [DJČ621], 2003- ДJЧ414 [DJČ414] ДJЧ622-624 [DJČ622-624] ДJЧ625 [DJČ625], 2003- ДJЧ412 [DJČ412] ДJЧ626-629 [DJČ626-629] ДJЧ630 [DJČ630], 2003- ДJЧ413 [DJČ413] ДJЧ631 [DJČ631], 2003- ДJЧ415 [DJČ415] ДJЧ632 [DJČ632], 2003- ДJЧ411 [DJČ411] |
Greben, Vela Luka: DJČ621-632 |
1983-1985: DJČ621-631 1987: DJČ632 |
DJČ622 (sunk 1991, to Croatia (Lupac)), DJČ623 (captured by Croatia 1991, No 105), DJČ624 (captured by Croatia 1991, No 106) |
Montenegro, 2006: DJČ627, 628 (DJČ627, 628) |
1991: DJČ629 2000s: DJČ626 in service (2019): DJČ411-415 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 48 |
| Length, m | 22.3 |
| Breadth, m | 4.84 |
| Draught, m | 1.07 hull 1.58 propellers |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU diesels |
| Power, h. p. | 1740 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 320(22) |
| Armament | 2 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher |
| Military load | 40 troops or 15t cargo |
| Electronic equipment | Decca 101 radar |
| Complement | 8 |
Graphics

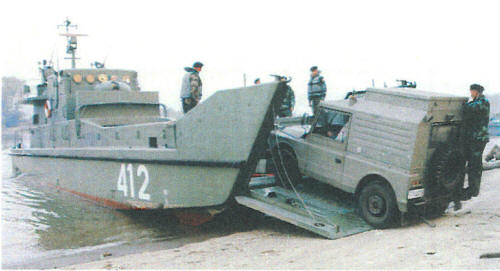

DJČ412 2003
Project history
Type 22. GRP construction. 32m² cargo area and bow ramp.
Modernizations
None.
Naval service
No significant events.
