DJČ613 landing craft (1978)
DJČ616 2003
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ДJЧ613-620 [DJČ613-620] |
Greben, Vela Luka: DJČ613-620 |
1978: DJČ613-620 |
DJČ613 (captured by Croatia 1991, No 107), DJČ615 (captured by Croatia 1991, No 104), DJČ619 (sunk 1991), DJČ620 (sunk 1991) |
Serbia, 2006: DJČ614, 616-618 (DJČ614, 616-618) |
none |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 38 |
| Length, m | 21.3 |
| Breadth, m | 4.84 |
| Draught, m | 1.07 hull 1.58 propellers |
| No of shafts | 2 |
| Machinery | 2 MTU 12V31 TC81 diesels |
| Power, h. p. | 2500 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 320(22) |
| Armament | 1 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher |
| Military load | 40 troops or 6t cargo |
| Electronic equipment | Decca 101 radar |
| Complement | 7 |
Graphics

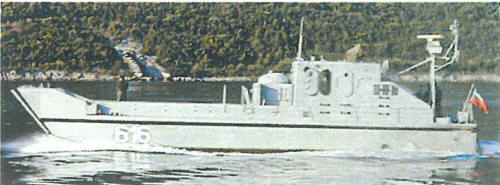

DJČ616 2003
Project history
Type 21. GRP construction. 32m² cargo area and bow ramp.
Modernizations
None.
Naval service
No significant events.
