DJČ601 landing craft (1976-1977)

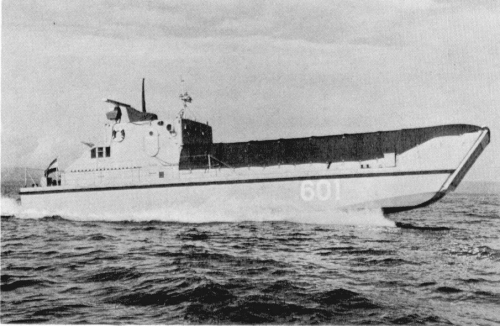

DJČ601 1979
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
ДJЧ601-612 [DJČ601-612] |
Greben, Vela Luka: DJČ601-612 |
1976-1977: DJČ601-612 |
DJČ601 (sunk 1991, to Croatian police), DJČ602 (captured by Croatia 1991, No 101), DJČ603 (captured by Croatia 1991, No 102), DJČ612 (captured by Croatia 1991, No 103) |
Serbia, 2006: DJČ604-606, 608-610 (DJČ604-606, 608-610) |
1997: DJČ607, 611 |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 38 |
| Length, m | 21.3 |
| Breadth, m | 4.84 |
| Draught, m | 1.07 hull 1.58 propellers |
| No of shafts | 1 |
| Machinery | 1 MTU 12V331 TC81 diesel |
| Power, h. p. | 1450 |
| Max speed, kts | 23.5 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 320(22) |
| Armament | 1 x 1 - 20/90 M-71, 1 x 1 - 30/10 PB-30 grenade launcher |
| Military load | 40 troops or 6t cargo |
| Electronic equipment | Decca 101 radar |
| Complement | 7 |
Graphics
DJČ601 1979
Project history
Type 11. GRP construction. 32m² cargo area
Modernizations
None.
Naval service
No significant events.
