Split 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

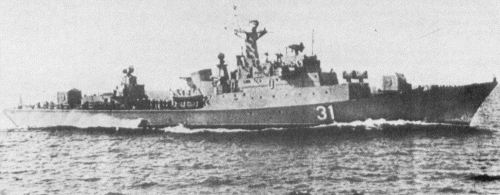

Сплит [Split] (ex-Сокол [Sokol]), 1993- Београд [Beograd]	ВПБР31 [VPBR31], 1993- ФР31 [FR31]	204	SSZ im. Gorkogo, Zelenodolsk, USSR	1/1978	21.4.1979	30.11.1979 // 10.3.1980	stricken 2005
Копер [Koper] (ex-СКР-481 [SKR-481]), 1993- Подгорица [Podgoritsa]	ВПБР32 [VPBR32], 1993- ФР32 [FR32]	205	SSZ im. Gorkogo, Zelenodolsk, USSR	25.12.1979	24.12.1981	30.9.1982 // 5.12.1982	stricken 1995

Technical data

Displacement standard, t	1440
Displacement full, t	1660
Length, m	96.5
Breadth, m	12.6
Draught, m	3.20 hull 5.57 sonar dome
No of shafts	3
Machinery	CODAG: 1 M-8G gas turbine + 2 68B diesels
Power, h. p.	20000+16000=36000
Max speed, kts	29.5
Fuel, t	diesel oil
Endurance, nm(kts)	4500(14)
Armament	1 x 2 Osa-M SAM (20 9M33), 2 x 2 - 76/59 AK-726, 2 x 2 - 30/71 AK-230, 2 x 12 RBU-6000 Smerch-2 ASWRL, 2 DCR (12), 14 mines
Electronic equipment	MR-320 Topaz-2V, Fut-N, Don, 4R-33, MR-105 Turel', MR-104 Rys' radars, MG-311 Vychegda sonar, Bizan'-4B ECM suite
Complement	108

Standard scale images

Graphics

Project history

Soviet project 1159. VPBR means velici patrolni brod (large patrol vessel). Later reclassified as missile frigates.

Modernizations

1982, Split; 1984, Koper: + 2 x 2 P-20M Termit SSM (4 P-20M)

Naval service

No significant events.
