TCh101 fast attack craft (torpedo) (1951-1960)





TCh174

Ships


Names Builders Commissioned Losses Transfers Discarding

96 boats from

ТЧ101-199 [TCh101-199]

Yugoslavia: TCh101-199

1951-1960: TCh101-199

none

Egypt, 1956: 6 boats

Ethiopia, 1960: 2 boats

Cambodia, 1964: 2 boats

Sudan, 1970: 6 boats

early 1970s: 50 boats

late 1970s: 30 boats



Technical data


Displacement standard, t

55

Displacement full, t

60

Length, m

21.0 pp 23.8 oa

Breadth, m

6.50

Draught, m

2.40

No of shafts

3

Machinery

3 Packard petrol engines

Power, h. p.

5000

Max speed, kts

36

Fuel, t

petrol

Endurance, nm(kts)
Armament

1 x 1 - 40/60 Mk 3, 2 x 1 - 12.7/90, 2 - 450 TT

Electronic equipment

none

Complement

14



Standard scale images


<i>TCh115 </i>1965
TCh115 1965


Graphics

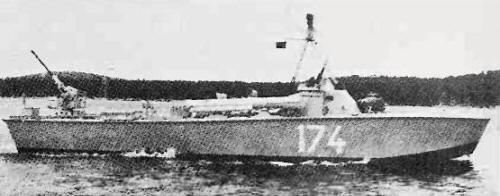

<i>TCh174</i>
TCh174


Project history

Type 108. Yugoslavian design based on the US Higgins 78ft type PT.

Modernizations

1963, 24 boats as type 158: - 2 - 450 TT; + 1 x 1 - 40/60 Mk 3, 2 - 4 mines, max speed 24-26kts

Naval service

No significant events.
