MITAR ACEV fast attack craft (missile) (1965-1969)

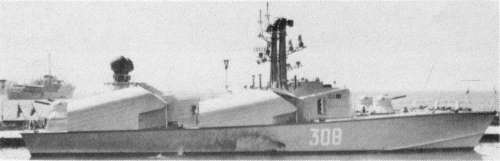

Karlo Royts 1972

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Митар Ацев [Mitar Atsev] РЧ301 [RCh301]   Vympel, Rybinsk, USSR     1965 to Croatia 1991 (Dubrovnik)
Владо Багат [Vlado Bagat] РЧ302 [RCh302]   Vympel, Rybinsk, USSR     1966 stricken 1992
Петар Драпшин [Petar Drapshin] РЧ303 [RCh303]   Vympel, Rybinsk, USSR     1967 stricken 1992
Стева Филиповић [Steva Filipovich] РЧ304 [RCh304]   Vympel, Rybinsk, USSR     1968 to Egypt 2007 (647)
Жикица Jовановић [Zhikitsa Yovanovich] РЧ305 [RCh305]   Vympel, Rybinsk, USSR     1968 to Egypt 2007 (649)
Никола Мартиновић [Nikola Martinovich] РЧ306 [RCh306]   Vympel, Rybinsk, USSR     1968 to Egypt 2007 (651)
Jосип Мазар [Yosip Mazar] РЧ307 [RCh307]   Vympel, Rybinsk, USSR     1968 to Egypt 2007 (653)
Карло Роjц [Karlo Royts] РЧ308 [RCh308]   Vympel, Rybinsk, USSR     1969 to Egypt 2007 (655)
Франц Рожман [Frants Rozhman] РЧ309 [RCh309]   Vympel, Rybinsk, USSR     1969 stricken 1992
Велимир Шкорпик [Velimir Shkorpik] РЧ310 [RCh310]   Vympel, Rybinsk, USSR     1969 to Croatia 1991 (Velimir Skorpik)


Technical data


Displacement standard, t

184

Displacement full, t

226

Length, m

38.6

Breadth, m

7.60

Draught, m

1.84

No of shafts

3

Machinery

3 M-504B diesels

Power, h. p.

15000

Max speed, kts

42

Fuel, t

diesel oil

Endurance, nm(kts)

1800(14)

Armament

4 x 1 P-15/P-15T SSM (4 P-15/P-15T), 2 x 2 - 30/71 AK-230

Electronic equipment

MR-101 Rangout, MR-104 Rys' radars

Complement

28



Standard scale images


<i>Mitar Acev</i> 1975
Mitar Acev 1975


Graphics


<i>Karlo Royts </i>1972
Karlo Royts 1972


Project history

Soviet Project 205 craft.

Modernizations

None.

Naval service

No significant events.
