KALNIK coastal patrol craft (1964-1968)

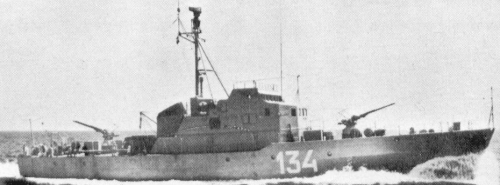

Romaniya 1968

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Цер [Tser] ПЧ131 [PCh131]   Trogir Yd     1964 to Malta 3.1982 (President Mintoff)
Калник [Kalnik] ПЧ132 [PCh132]   Trogir Yd     1964 stricken 1992
Велебит [Velebit] ПЧ133 [PCh133]   Trogir Yd     1964 stricken 1992
Романиjа [Romaniya] ПЧ134 [PCh134]   Trogir Yd     1964 stricken 1992
Триглав [Triglav] ПЧ135 [PCh135]   Trogir Yd     1964 stricken 1983
Ловћен [Lovchen] ПЧ136 [PCh136]   Trogir Yd     1964 stricken 1983
Рудник [Rudnik] ПЧ137 [PCh137]   Trogir Yd     1967 stricken 1992
Каменар? [Kamenar]? ПЧ138 [PCh138]   Trogir Yd     1968 stricken 1983
Дурмитор [Durmitor] ПЧ139 [PCh139]   Trogir Yd     1968 to Malta 3.1982 (President Tito)
Граничар? [Granichar]? ПЧ140 [PCh140]   Trogir Yd     1968 stricken 1992


Technical data


Displacement standard, t

85

Displacement full, t

120

Length, m

28.0

Breadth, m

4.50

Draught, m

2.50

No of shafts2
Machinery

2 MTU MB820 diesels

Power, h. p.

2200

Max speed, kts

17

Fuel, tdiesel oil
Endurance, nm(kts)
Armament

2 x 1 - 40/60 Mk 3 or (1 x 1 - 40/60 Mk 3, 1 x 3 - 20/80 M55) or 2 x 3 - 20/80 M55

Electronic equipment

Kelvin Hughes 14/9 radar

Complement


Standard scale images


<i>Kalnik</i> 1975
Kalnik 1975


Graphics


<i>Romaniya </i>1968
Romaniya 1968


Project history

Maritime Border Brigade craft.

Modernizations

None.

Naval service

No significant events.
