FIGHTING SHIPS OF THE WORLD
YEMEN, SOUTH / YEMEN
COASTAL FORCES

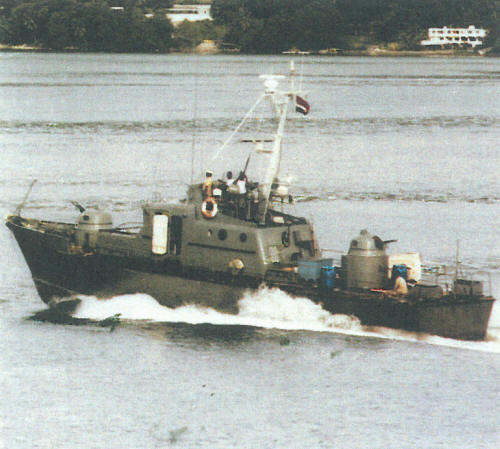

pr. 1400ME patrol boats (1978-1987)
1990
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
4 units 201-203 303, 304 |
More, Feodosia, USSR: 4 units, 201-203, 303, 304 |
1978: 4 units 1984: 201, 202 1987: 203, 303, 304 |
201? (1994?) |
none |
1983: 4 units 1997: 303, 304 2006-08: 202, 203 |
Technical data
| Displacement standard, t | 37 |
|---|---|
| Displacement full, t | 40 |
| Length, m | 23.8 |
| Breadth, m | 5.15 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 M-401BT diesels |
| Power, h. p. | 2000 |
| Max speed, kts | 29 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 450(13) |
| Armament | 2 x 2 - 12.7/79 |
| Electronic equipment | Lotsiya radar |
| Complement | 9 |
Standard scale images
1980
Graphics
1990
Project history
Soviet-built boats of export project 1400ME.
Modernizations
None.
Naval service
5 boats were transferred to Yemeni Navy in May 1990 during country unification.
