PB1 patrol launch (1994)
PB1 1993
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PB1 |
SeaArk, Monticello, USA: PB1 | 1994: PB1 |
none |
none |
~2015: PB1 |
Technical data
| Displacement standard, t | 11 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 12.2 |
| Breadth, m | 3.86 |
| Draught, m | 0.70 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3208TA diesels |
| Power, h. p. | 690 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 400(22) |
| Armament | 2 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon R40X radar |
| Complement | 5 |
Graphics

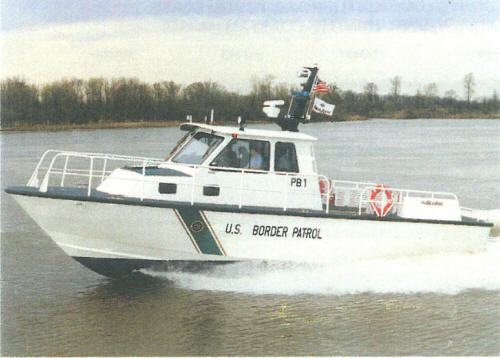

PB1 1993
Project history
Royal Police. US 40ft Dauntless class. Second unit, delivered in 1999, was used as pilot boat.
Modernizations
none
Naval service
No significant events.
