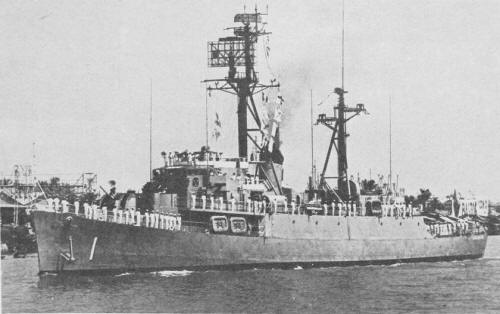

Trần Hưng Đạo 1971

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Trần Hưng Đạo (ex-Camp)	HQ1		Brown SB, Houston, USA	1.1943	16.4.1943	16.9.1943 // 6.2.1971	escaped to Philippines 4.1975 (Rajah Lakandula)
Trần Khánh Dư (ex-Forster)	HQ4		Consolidated, Orange, USA	8.1943	13.11.1943	25.1.1944 // 25.9.1971	captured by North Vietnam 29.4.1975 (Dai Ky)

Technical data

Displacement standard, t	1590
Displacement full, t	1850
Length, m	91.4 wl 93.3 oa
Breadth, m	11.2
Draught, m	3.20 full load
No of shafts	2
Machinery	4 Fairbanks Morse diesels
Power, h. p.	6000
Max speed, kts	21
Fuel, t	diesel oil 320
Endurance, nm(kts)	9000 (12)
Armament	2 x 1 - 76/50 Mk 34, 2 x 3 - 324 Mk 32 TT, 1 x 24 Hedgehog Mk 15 ASWRL, 2 DCR (120)
Electronic equipment	SPS-28, SPS-10, Mk 34 radars, SQS-31 sonar
Complement	170

Standard scale images

Graphics

Project history

Former US FMR (Edsall) class destroyer escorts, converted after WWII to radar pickets.

Modernizations

None.

Naval service

Trần Hưng Đạo in April 1975 escaped to Philippines and later commissioned by Philippine Navy as Rajah Lakandula. Trần Khánh Dư was 29.4.1975 captured at Saigon by North Vietnamese Army and commissioned by Vietnam People's Navy as Dai Ky.
