Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
14+ boats	USA: 14+ boats	1942-1944 // 1955: 14+ boats	unknown 14 boats (to North Vietnam 1975)	none	unknown

Technical data

Displacement standard, t	24
Displacement full, t	52
Length, m	15.3
Breadth, m	4.30
Draught, m	1.37
No of shafts	2
Machinery	2 diesels
Power, h. p.	330
Max speed, kts	8 (loaded)
Fuel, t	diesel oil
Endurance, nm(kts)	140(8)
Armament	2 x 1 - 12.7/90
Complement	4 + HQ

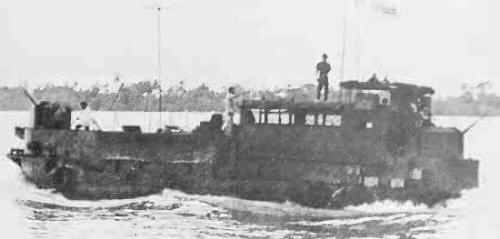

Graphics

Project history

Command craft converted from LCM(3) type landing craft.

Modernizations

None.

Naval service

No significant events.
