ASPB type patrol craft (1967-1968/1969-1970)





1970

Ships


Names Builders Commissioned Losses Transfers Discarding

84 boats, presumably HQ5100-...

Gunderson Marine, Portland, USA: 84 boats

1967-1968 // 1969-1970: 84 boats

unknown

84 boats (to North Vietnam 1975)

none

unknown



Technical data


Displacement standard, t
Displacement full, t

36

Length, m

15.3

Breadth, m

4.70

Draught, m

1.10

No of shafts

2

Machinery

2 diesels

Power, h. p.

850

Max speed, kts

14

Fuel, t

diesel oil

Endurance, nm(kts)
Armament

most: 2 x 1 - 20/70 Mk 10 or (1 x 1 - 20/70 Mk 10, 1 x 2 - 12.7/90), 2 x 1 - 7.6/90, 2 x 1 - 40/10 M18 grenade launchers

some: 2 x 1 - 20/70 Mk 10 or (1 x 1 - 20/70 Mk 10, 1 x 2 - 12.7/90), 2 x 1 - 7.6/90, 2 x 1 - 40/10 M18 grenade launchers, 1 x (1 - 81/12 M29 mortar + 1 - 7.6/90)

Electronic equipmentradar
Complement

6

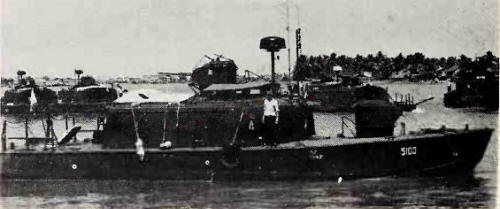

Graphics


1970
1970


Project history

Assault support patrol boats (ASPB) with welded-steel hulls.

Modernizations

None.

Naval service

No significant events.
