VIETNAM / NORTH VIETNAM
ESCORTS
HQ-381 corvette (2003)

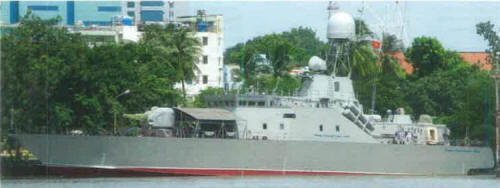

HQ-381 2008

Ships


Name No Yard No Builder Laid down Launched Comp Fate
HQ-381 HQ-381   Ba Son, Ho Chi Minh City   6/1998 2003 in service (2019)


Technical data


Displacement standard, t

517

Displacement full, t

600

Length, m

62.0

Breadth, m

11.0

Draught, m

2.20

No of shafts

2 waterjets

Machinery

2 MTU 16V4000 M90 diesels

Power, h. p.

19600

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

2200(14)

Armament

2 x 4 Uran SSM (8 3M24E), 1 x 4 Strela-3 SAM (24 9K34), 1 x 1 - 76/59 AK-176, 1 x 6 - 30/54 AK-630, 2 x 1 - 12.7/79

Electronic equipment

Pozitiv-E, MR-123E Vympel-E, nav. radars, 2x PK-16 decoy RL

Complement

28



Standard scale images


<i>HQ-381</i> 2010
HQ-381 2010


Graphics


<i>HQ-381 </i>2008
HQ-381 2008


Project history

Designed by Severnoye Bureau in St. Petersburg, Russia and built from imported components. Planned construction of the 2nd unit was abandoned.

Modernizations

None.

Naval service

No significant events.
