HQ-272 patrol craft (2012-2014)
HQ-272 2011
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| HQ-272 | 272 | Hong Ha, Haiphong | 16.1.2012 | in service (2019) | |||
| HQ-273 | 273 | Hong Ha, Haiphong | 31.8.2012 | in service (2019) | |||
| HQ-274 | 274 | Hong Ha, Haiphong | 28.5.2014 | in service (2019) | |||
| HQ-275 | 275 | Hong Ha, Haiphong | 25.9.2014 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 420 |
| Length, m | 54.2 |
| Breadth, m | 9.16 |
| Draught, m | 3.40 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V595 TE890 diesels |
| Power, h. p. | 16856 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2500(14) |
| Armament | 1 x 1 - 76/59 AK-176M, 1 x 6 - 30/54 AK-630M |
| Electronic equipment | nav., MR-123 Vympel-A radars |
| Complement | 21 + 12 passengers |
Standard scale images

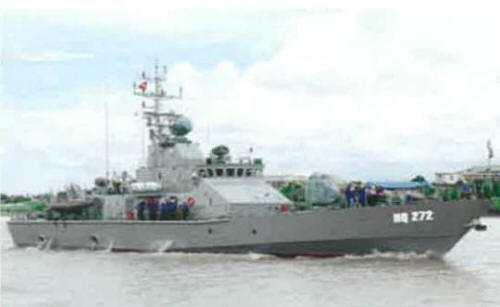

HQ-272 2015
Graphics
HQ-272 2011
Project history
Indigenous TT400TP design, modified FC54 design of police craft. Steel hull and aluminium superstructure.
Modernizations
None.
Naval service
No significant events.
