UNITED STATES NAVY (UNITED STATES OF AMERICA)

SUBMARINES

TULLIBEE nuclear powered submarine (1960)

Tullibee 1960

Tullibee 1963

No Name Yard No Builder Laid down Launched Comm Fate
SSN597 Tullibee 151 Electric Boat, Groton 26/5/1958 27/4/1960 9/11/1960 stricken 6/1988



Displacement standard, t



Displacement normal, t

2316 / 2607

Length, m

83.2

Breadth, m

7.10

Draught, m

5.80

No of shafts

1

Machinery

1 Westinghouse steam turbine generator, 1 Combustion Engineering S2C nuclear reactor, 1 electric motor

Power, h. p.

2500

Max speed, kts

12.9 / 14.8

Fuel, t

nuclear

Endurance, nm (kts) practically unlimited

Armament

4 - 533 Mk 64 TT (amidships, 12)

Sensors

BPS-9 radar, BQQ-2 (BQR-7 + BQS-6), BQG-1 PUFFS sonars, WLR-1 ECM suite

Complement

56

Diving depth operational, m

210



Ship project history: Tullibee was an attempt to build a minimum nuclear submarine specifically for ASW; originally she was to have been even smaller than she turned out to be, and ultimately she was somewhat underpowered, with an S2C reactor reportedly producing only 2500shp, one-third of the Skate power plant. She was completed with the BQQ-3 sonar and quartet of hull-mounted torpedo tubes of the Threshers, but was not fitted to fire SUBROC. She also had a prototype turbo-electric drive, for quietness.

Modernizations: 1970s: - BQQ-2 sonar suite; + BQQ-3 (BQS-12 + BQR-7) sonar suite

Naval service: No significant events.

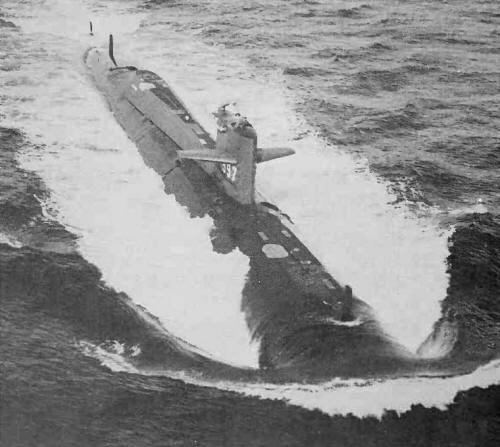

Tullibee 1960

Ivan Gogin, 2015
