UNITED STATES NAVY (UNITED STATES OF AMERICA)

SUBMARINES

"L" submarines (1916-1918)

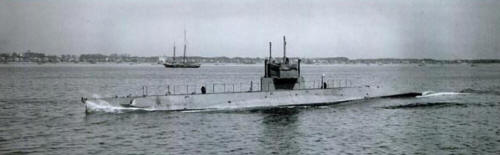

L1 1915

No Name Yard No Builder Laid down Launched Comm Fate
SS40 L1, 1917- AL1, 1918- L1 219 Fore River, Quincy 4/1914 20/1/1915 4/1916 sold 7/1922
SS41 L2, 1917- AL2, 1918- L2 220 Fore River, Quincy 3/1914 11/2/1915 9/1916 sold 11/1933
SS42 L3, 1917- AL3, 1918- L3 221 Fore River, Quincy 4/1914 15/3/1915 4/1916 sold 11/1933
SS43 L4, 1917- AL4, 1918- L4 222 Fore River, Quincy 3/1914 3/4/1915 5/1916 stricken 4/1922
SS44 L5   Lake, Bridgeport 5/1914 1/5/1916 2/1918 stricken 12/1922
SS45 L6 121 Craig SB, Long Beach 5/1914 31/8/1916 12/1917 stricken 11/1922
SS46 L7 122 Craig SB, Long Beach 6/1914 28/9/1916 12/1917 stricken 11/1922
SS48 L8   Portsmouth N Yd 2/1915 23/4/1917 8/1917 stricken 11/1922
SS49 L9, 1917- AL9, 1918- L9 227 Fore River, Quincy 11/1914 27/10/1915 8/1916 sold 11/1933
SS50 L10, 1917- AL10, 1918- L10 228 Fore River, Quincy 2/1915 16/3/1916 8/1916 stricken 5/1922
SS51 L11, 1917- AL11, 1918- L11 229 Fore River, Quincy 2/1915 16/5/1916 8/1916 stricken 12/1930



Displacement standard, t



Displacement normal, t

SS40 - 43, 49 - 51: 450 / 548

SS44 - 48: 456 / 524

Length, m

SS40 - 43, 49 - 51: 51.0

SS44 - 48: 50.3

Breadth, m

SS40 - 43, 49 - 51: 5.30

SS44 - 48: 4.50

Draught, m

SS40 - 43, 49 - 51: 4.10

SS44 - 48: 4.00

No of shafts

2

Machinery

SS40-43, 49-51: 2 NLSE diesels / 2 electric motors

SS44-46, 48: 2 Busch-Sulzer diesels / 2 electric motors

Power, h. p.

1200 / 800

Max speed, kts

14 / 10.5

Fuel, t

diesel oil 55

Endurance, nm (kts) 3300(11) / 150(5)

Armament

SS40 - 43, 49 - 51: 4 - 450 TT (bow, 8)

SS44 - 48: 1 x 1 - 76/23 Mk IX, 4 - 450 TT (bow, 8)

Complement

28

Diving depth operational, m

60



Ship project history: They were the first US submarines with deck guns. Their 76mm/23s retracted vertically into a deckhouse until only about half the barrel was extended, to reduce underwater drag.

    Of the first four boats, three failed on their surface runs; two failed their submerged battery runs. All required extensive overhauls before they could be accepted.

Modernizations: 1918, AL-1-4, 9-11: + SC sonar

Naval service: During 1917-18, L1-4 and L9-11 were stationed at Bantry Bay, Ireland. British waters they wore 'AL' numbers on the conning tower to distinguish them from the British 'L' class.

L10 1916
