PT9 torpedo boat (1940)
PT9
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PT9 |
British Power Boat, Hythe, UK: PT9 |
6/1940: PT9 |
none |
United Kingdom, 4.1941: PT9 (MTB258) |
none |
Technical data
| Displacement standard, t | 30 |
|---|---|
| Displacement full, t | 40 |
| Length, m | 21.3 |
| Breadth, m | 6.07 |
| Draught, m |
|
| No of shafts | 3 |
| Machinery | 3 petrol engines |
| Power, h. p. | 3000 |
| Max speed, kts | 45 |
| Fuel, t | petrol |
| Endurance, nm(kts) |
|
| Armament | 2 x 2 - 12.7/90, 4 - 450 TT |
| Complement | 17 |

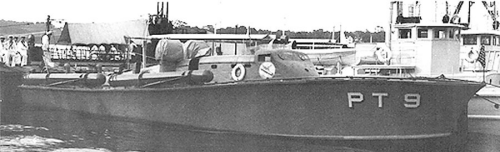

Graphics
PT9
Project history
Scott-Payne design.
Modernizations
None.
Naval service
: No significant events.
© Ivan Gogin, 2014
