PT10

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
PT10 - 19	ELCO, Bayonne: PT10 - 19	11 - 12.1940: PT10 - 19	none	United Kingdom, 4.1941: PT10 - 19 (MTB259 - 268)	none

Technical data

Displacement standard, t	32
Displacement full, t	40
Length, m	21.3
Breadth, m	6.07
Draught, m	1.37
No of shafts	3
Machinery	3 petrol engines
Power, h. p.	3600
Max speed, kts	45
Fuel, t	petrol
Endurance, nm(kts)
Armament	2 x 2 - 12.7/90, 4 - 450 TT
Complement	17

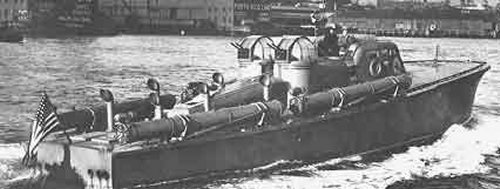

Graphics

Project history

First serial US MTBs, 70ft ELCO design. Wooden hulls.

Modernizations

None.

Naval service

: No significant events.
