BANCROFT patrol gunboat (1893)





  Bancroft

Ships


No Name Yard No Builder Laid down Launched Comm Fate
PG4½ Bancroft, 6.1906- Itasca 5 Moore, Elizabethport 2.1891 30.4.1892 3.1893 to Revenue Cutter service 6.1906, sold 5.1922


Technical data


Displacement normal, t

839

Displacement full, t
Length, m

57.6

Breadth, m

9.75

Draught, m

3.71 mean

No of shafts2
Machinery

2 VTE, 2 cylindrical boilers

Power, h. p.

1200

Max speed, kts

14.5

Fuel, tcoal 139
Endurance, nm(kts)
Armament

4 x 1 - 102/40 Mk III/IV/V/VI, 8 x 1 - 47/40-45 Driggs-Schroeder Mk I/II, 1 x 1 - 37/40 Driggs-Schroeder heavy Mk I, 2 - 450 TT (beam)

Complement

148



Graphics

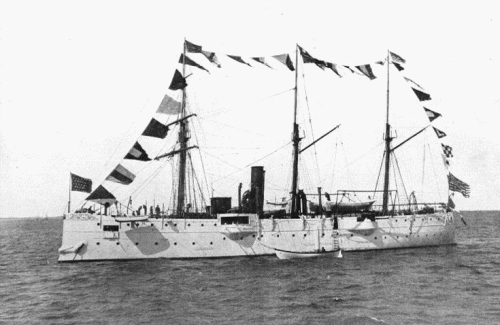

  <i>Bancroft</i>
  Bancroft


Project history

Authorized under the Act of 7.9.188S. Originally barquentine-rigged; the 102mm guns were mounted to port and starboard between forecastle arid poop.

Modernizations

1899: - 2 - 450 TT

1907: Itasca was armed with only 4 x 1 - 57/50 Driggs-Schroeder Mk II/III

Naval service

Became the Revenue Cutter Itasca.
