MONAGHAN destroyers (1911 - 1912)

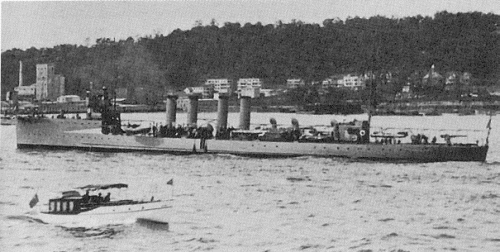

Trippe 1912

Ships


No Name Yard No Builder Laid down Launched Comm Fate
DD32, 6.1924- CG15, 5.1931- DD32 Monaghan, 7.1933- unnamed 134 Newport News 6.1910 18.2.1911 7.1911 Coast Guard cutter 6.1924, destroyer 5.1931, stricken 7.1934
DD33, 6.1924 - CG20, 5.1931- DD33 Trippe 54 Bath Iron Wks 4.1910 20.12.1910 3.1911 Coast Guard cutter 6.1924, destroyer 5.1931, stricken 7.1934
DD34 Walke, 7.1933- unnamed 181 Fore River, Quincy 3.1910 3.11.1910 6.1911 stricken 3.1935
DD35, 4.1924- CG8, 5.1931- DD35 Ammen, 7.1933- unnamed 95 New York SB, Camden 3.1910 30.9.1910 5.1911 Coast Guard cutter 4.1924, destroyer 5.1931, stricken 7.1934
DD36, 4.1924- CG16, 10.1930- DD36 Patterson, 7.1933- unnamed 361 Cramp, Philadelphia 4.1910 29.4.1911 10.1911 Coast Guard cutter 4.1924, destroyer 10.1930, stricken 6.1934
DD37, 6.1924- CG11, 11.1930- DD37 Fanning 144 Newport News 4.1911 11.1.1912 6.1912 Coast Guard cutter 6.1924, destroyer 11.1930, stricken 6.1934
DD38 Jarvis 112 New York SB, Camden 7.1911 4.4.1912 10.1912 stricken 3.1935
DD39, 5.1924- CG12, 5.1931- DD39 Henley 196 Fore River, Quincy 7.1911 3.4.1912 12.1912 Coast Guard cutter 5.1924, destroyer 5.1931, stricken 7.1934
DD40, 4.1924- CG9, 10.1930- DD40 Beale 379 Cramp, Philadelphia 5.1911 30.8.1912 8.1912 Coast Guard cutter 4.1924, destroyer 10.1930, stricken 6.1934
DD41, 4.1924- CG13, 5.1931- DD41 Jouett 56 Bath Iron Wks 3.1911 15.4.1912 5.1912 Coast Guard cutter 4.1924, destroyer 5.1931, stricken 7.1934
DD42 Jenkins 57 Bath Iron Wks 3.1911 29.4.1912 6.1912 stricken 3.1935


Technical data


Displacement normal, t

787

Displacement full, t

883

Length, m

89.5

Breadth, m

8.20

Draught, m

2.50

No of shafts

DD32, 33, 35 - 42: 3

DD34: 2

Machinery

DD32, 33, 35 - 42: 3 Parsons steam turbines, 4 Thornycroft boilers

DD34: 2 Curtis steam turbines, 4 Thornycroft boilers

Power, h. p.

DD32, 33, 35 - 42: 12000

DD34: 10000

Max speed, kts

DD32, 33, 35 - 42: 29.5

DD34: 28

Fuel, t

oil 180 - 230

Endurance, nm(kts)2175(15)
Armament

DD32 - 39, 41, 42: 5 x 1 - 76/50 Mk III/V/VI, 3 x 2 - 450 TT

DD40: 4 x 1 - 76/50 Mk III/V/VI, 3 x 2 - 450 TT

Complement

89



Standard scale images


<i>nearly sister-ship Perkins</i> 1910
nearly sister-ship Perkins 1910
<i>nearly sister-ship Burrows</i> 1911
nearly sister-ship Burrows 1911


Graphics


<i>Trippe</i> 1912
Trippe 1912


Project history

These were repeat Pauldings authorized in March 1909 (DD32-36) and June 1910. All but the Walke (DD34) had triple screws; six (DD 32, 34,36,37, 39, 40) had three funnels. The remaining units (Bath and New York Shipbuilding) all had four funnels.

Modernizations

1915, Henley: Curtis steam turbines were replaced by 3 sets Westinghouse geared steam turbines (13000hp)

1917 - 1918, all: + 1 DCT (Y-gun), 2 DCR

Naval service

No significant events.
