TAHOMA cutters (1908 - 1909)
Yamacraw 1914
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| CG20 | Tahoma | New York SB, Camden | 1907 | 10.10.1908 | 3.1909 | wrecked 20.9.1914 | |
| CG21 | Yamacraw | New York SB, Camden | 1907 | 24.10.1908 | 5.1909 | to USN as gunboat 4.1917-8/1919, sold 12.1937 |
Technical data
| Displacement normal, t | 1006 |
|---|---|
| Displacement full, t | 1082 |
| Length, m | 58.2 |
| Breadth, m | 9.75 |
| Draught, m | 4.27 |
| No of shafts | 1 |
| Machinery | 1 VTE |
| Power, h. p. | |
| Max speed, kts | 14.1 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 57/45 Hotchkiss Mk II/III |
| Complement | 69 |
Graphics

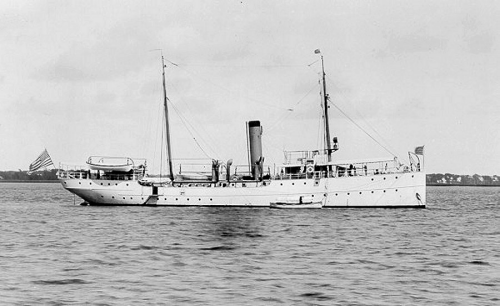

Yamacraw 1914
Project history
Revenue service cutters.
Modernizations
1917, both: - 2 x 1 - 57/45; + 2 x 1 - 76/50 Mk II/III/V/VI
Naval service
Tahoma grounded off the Aleutian Islands 20.9.1914.
