ARGUS cutters
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| WMSM915 | Argus | 300 | Eastern Sh. Group, Panama City | 2018 | 2019 | 2019 | building (2019) |
| WMSM916 | Chase | 301 | Eastern Sh. Group, Panama City | 2019 | 2020 | 2022 | awarded (2019) |
| WMSM917 | Ingham | 302 | Eastern Sh. Group, Panama City | 2020 | 2021 | 2023 | awarded (2019) |
| WMSM918 | Rush | 303 | Eastern Sh. Group, Panama City | 2021 | 2022 | 2024 | awarded (2019) |
| WMSM919 | Pickering | 304 | Eastern Sh. Group, Panama City | 2022 | 2023 | 2025 | awarded (2019) |
| WMSM920 | Icarus | 305 | Eastern Sh. Group, Panama City | 2023 | 2024 | 2026 | awarded (2019) |
| WMSM921 | Active | 306 | Eastern Sh. Group, Panama City | 2024 | 2025 | 2027 | awarded (2019) |
| WMSM922 | Diligence | 307 | Eastern Sh. Group, Panama City | 2025 | 2026 | 2028 | awarded (2019) |
| WMSM923 | Alert | 308 | Eastern Sh. Group, Panama City | 2026 | 2027 | 2029 | awarded (2019) |
| WMSM924 | Vigilant | Eastern Sh. Group, Panama City | 2027 | 2028 | 2030 | awarded (2019) | |
| WMSM925 | Reliance | Eastern Sh. Group, Panama City | 2028 | 2029 | 2031 | awarded (2019) | |
| WMSM926 | planned (2019) | ||||||
| WMSM927 | planned (2019) | ||||||
| WMSM928 | planned (2019) | ||||||
| WMSM929 | planned (2019) | ||||||
| WMSM930 | planned (2019) | ||||||
| WMSM931 | planned (2019) | ||||||
| WMSM932 | planned (2019) | ||||||
| WMSM933 | planned (2019) | ||||||
| WMSM934 | planned (2019) | ||||||
| WMSM935 | planned (2019) | ||||||
| WMSM936 | planned (2019) | ||||||
| WMSM937 | planned (2019) | ||||||
| WMSM938 | planned (2019) | ||||||
| WMSM939 | planned (2019) |
Technical data
| Displacement standard, t | 2900 |
|---|---|
| Displacement full, t | 3715 |
| Length, m | 102.5 pp 109.7 oa |
| Breadth, m | 16.5 |
| Draught, m | 6.10 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 19520 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 8500(14) |
| Armament | 1 x 1 - 57/70 Mk 110 Mod. 0, 1 x 1 - 25/75 Mk 38, 6 x 1 - 12.7/90, 1 helicopter + UAVs (1 MH-60 or 1 MH-65 or 4 ScanEagle UAV) |
| Electronic equipment | SPS-77, SPS-73, SPQ-9B, Furuno radars, EOSS Mk 20 E/O director, Star Safire III E/O detector, SLQ-32(v)6 ECM suite, 2x Mk 53 mod.6 decoy RL (Nulka), 2x Mk 53 Nulka decoy RL, SICS CCS |
| Complement | 19 + 16 marines + 88 passengers |

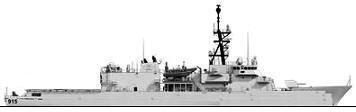

Standard scale images
Argus
Project history
Deepwater program, replacement for Reliance and Famous classes. Have a double helicopter hangsr able to carry 1 MH-60 or 2 MH-65 helicopters, can also carry up to 4 UAVs. Steel construction, conventional monohull design with few stealth features. A dual stern ramp is fitted to launch and recovery two fast RIBs (1 SRP and 1 LRI). Typically each ship carries two 7m and one 11m boats. Contract for the first ship (with 8 later ships optional) was awarded by Eastern Shipbuilding Group/STX in September 2016.
Modernizations
None
Naval service
None
