WILLIAM WINDOM cutter (1896)
William Windom 1898
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| William Windom, 12.1915- Comanche | Iowa I W, Dubuque | 1894 | 23.6.1895 | 6/1896 | to USN 4.1898-8/1898 as gunboat, to USN 4.1917-8/1919 as gunboat, sold 11.1930 |
Technical data
| Displacement normal, t | |
|---|---|
| Displacement full, t | 670 |
| Length, m | 52.0 |
| Breadth, m | 8.23 |
| Draught, m | 2.90 |
| No of shafts | 2 |
| Machinery | 2 VTE, 2 Babcock & Wilcox boilers |
| Power, h. p. | 800 |
| Max speed, kts | 15 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 3 x 1 - 47/40 Hotchkiss Mk I |
| Complement | 49 |
Graphics

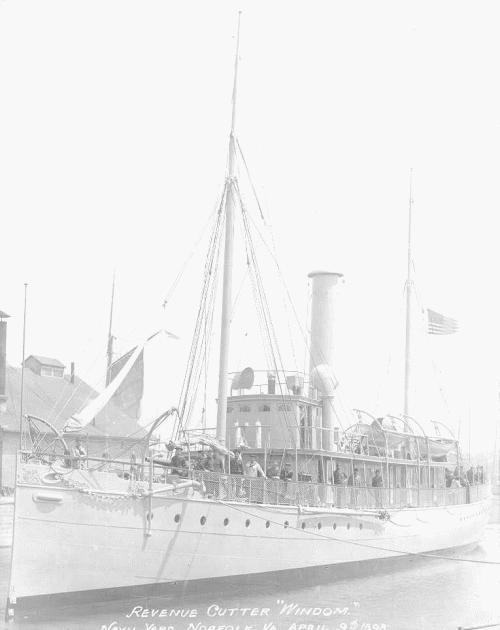

William Windom 1898
Project history
Iron-hulled revenue service cutter.
Modernizations
1917: Comanche was armed with 1 x 1 - 76/50 Mk II/III/V/VI, 2 x 1 - 57/40 Hotchkiss Mk I/II
Naval service
No significant events.
