TUSCARORA cutter (1902)
Tuscarora
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| CG7 | Tuscarora | Trigg, Richmond | 2/1901 | 12.10.1901 | 12.1902 | to USN as gunboat 4.1917-9/1919, sold 5.1936 |
Technical data
| Displacement normal, t | 670 |
|---|---|
| Displacement full, t | 739 |
| Length, m | 54.3 |
| Breadth, m | 9.14 |
| Draught, m | 3.35 |
| No of shafts | 1 |
| Machinery | 1 VTE, 1 Babcock & Wilcox boiler, 1 single-end boiler |
| Power, h. p. | |
| Max speed, kts | 14.2 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 57/45 Hotchkiss Mk II/III / Driggs-Schroeder Mk I |
| Complement | 65 |
Graphics

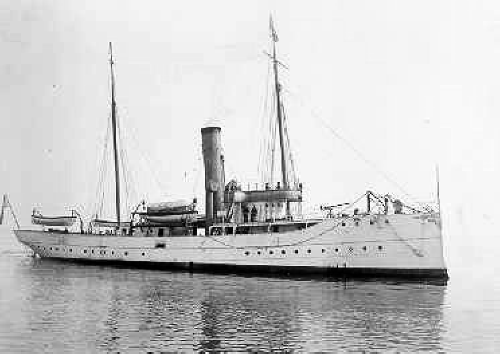

Tuscarora
Project history
Revenue service cutter
Modernizations
1917: + 1 x 1 - 76/50 Mk II/III/V/VI, 1 x 1 - 57/45 Driggs-Schroeder Mk I
Naval service
No significant events.
