SNOHOMISH cutter (1908)





Snohomish

Ships


No Name Yard No Builder Laid down Launched Comm Fate
CG16 Snohomish   Pusey & Jones, Wilmington 1907 14.3.1908 11.1908 to USN as gunboat 4.1917-8/1919, sold 1934
  Acushnet   Newport News 1907 16.5.1908 11/1908 to USN as gunboat 4.1917-9/1919, sold 5.1936


Technical data


Displacement normal, t800
Displacement full, t879
Length, m42.5 pp 46.3 oa
Breadth, m8.84
Draught, m4.19
No of shafts1
Machinery

1 VTE, 1 Babcock & Wilcox boiler, 1 single-end boiler

Power, h. p.1200
Max speed, kts12
Fuel, t

coal

Endurance, nm(kts)
Armament

2 x 1 - 37/45 Driggs-Schroeder heavy Mk I

Complement53


Graphics

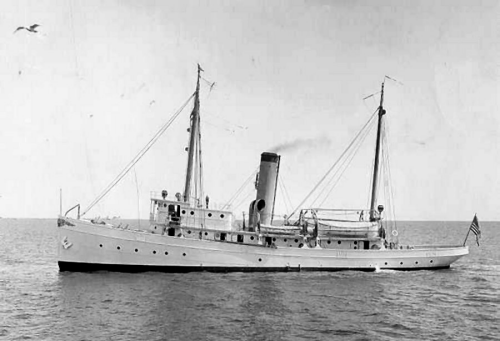

<i>Snohomish</i>
Snohomish


Project history

These ships primarily were intended for service as seagoing rescue tugs.

Modernizations

1917, both: - 2 x 1 - 37/45; + 1 x 1 - 76/50 Mk II/III/V/VI, 2 x 1 - 57/50 Driggs-Schroeder Mk II.

Naval service

No significant events.
