GALVESTON cutter (1891)
Apache
Ships
| No | Name | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Galveston, 12.1904- Apache | Reeder, Baltimore | 1890 | 18.12.1890 | 8/1891 | to USN 4.1917-8/1919 as gunboat, sold 12.1937 |
Technical data
| Displacement normal, t | |
|---|---|
| Displacement full, t | 708 |
| Length, m | 56.5 pp 57.9 oa |
| Breadth, m | 8.84 |
| Draught, m | 2.82 |
| No of shafts | 2 |
| Machinery | 2 VCE, 2 single-end boilers |
| Power, h. p. | 1200 |
| Max speed, kts | 12 |
| Fuel, t | coal |
| Endurance, nm(kts) | |
| Armament | 4 x 1 - 57/40 Hotchkiss Mk I/II |
| Complement | 41 |
Graphics

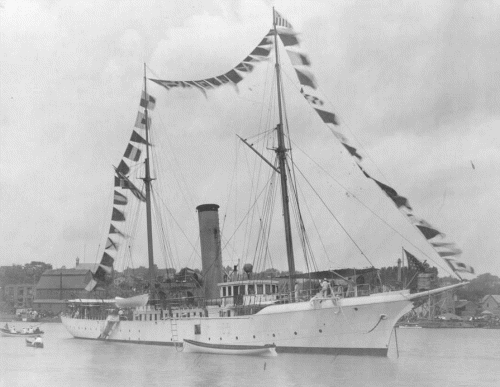

Apache
Project history
Iron-hulled revenue service cutter.
Modernizations
1905: ship was re-engined (1 shaft, 1 VTE)
1917: Apache was armed with 3 x 1 - 76/50 Mk II/III/V/VI
Naval service
No significant events.
