ACTIVE cutters (1927)





Agassiz

Ships


No Name Yard No Builder Laid down Launched Comm Fate
WPC125, 2.1942- WSC125 Active 320 New York SB, Camden 7.1926 30.11.1926 1.1927 sold 9.1963
WPC126, 2.1942- WSC126, 5.1966- WMEC126 Agassiz 321 New York SB, Camden 7.1926 30.11.1926 1/1927 sold 10.1969
WPC127, 2.1942- WSC127, 5.1966- WMEC127 Alert 322 New York SB, Camden 7.1926 30.11.1926 1/1927 sold 10.1969
WPC128, 2.1942- WSC128 Antietam, 6.1943- Bedloe 323 New York SB, Camden 7.1926 30.11.1926 1/1927 foundered 14.9.1944
WPC129, 2.1942- WSC129 Bonham 324 New York SB, Camden 7.1926 30.11.1926 1.1927 sold 12.1959
WPC130, 2.1942- WSC130 Boutwell 325 New York SB, Camden 8.1926 27.1.1927 2.1927 sold 5.1964
WPC131, 2.1942- WSC131, 5.1966- WMEC131 Cahoone 326 New York SB, Camden 8.1926 27.1.1927 2.1927 sold 12.1968
WPC132, 2.1942- WSC132, 5.1966- WMEC132 Cartigan 327 New York SB, Camden 8.1926 27.1.1927 3.1927 sold 4.1969
WPC133, 2.1942- WSC133 Montegomery, 4.1933- Colfax 340 New York SB, Camden 12.1926 22.3.1927 4.1927 sold 1.1956
WPC134, 2.1942- WSC134 Crawford 328 New York SB, Camden 8.1926 27.1.1927 2.1927 sold 8.1947
WPC135, 2.1942- WSC135 Diligence 330 New York SB, Camden 8.1926 27.1.1927 2.1927 sold 1.1963
WPC136, 2.1942- WSC136 Dix 331 New York SB, Camden 8.1926 27.1.1927 3.1927 sold 6.1948
WPC137, 2.1942- WSC137, 5.1966- WMEC137 Ewing 332 New York SB, Camden 12.1926 15.3.1927 3.1927 sold 1.1969
WPC138, 2.1942- WSC138 Faunce 333 New York SB, Camden 12.1926 15.3.1927 3.1927 sold 6.1948
WPC139, 2.1942- WSC139, 5.1966- WMEC139 Frederick Lee 334 New York SB, Camden 12.1926 15.3.1927 3.1927 sold 5.1966
WPC140, 2.1942- WSC140, 5.1966- WMEC140 General Greene 335 New York SB, Camden 12.1926 14.2.1927 3.1927 preserved 11.1968
WPC141, 2.1942- WSC141 Harriet Lane 319 New York SB, Camden 7.1926 30.11.1926 1.1927 sold 6.1948
WPC142, 2.1942- WSC142 Jackson 336 New York SB, Camden 12.1926 14.2.1927 3.1927 foundered 14.9.1944
WPC143, 2.1942- WSC143, 5.1966- WMEC143 Kimball 349 New York SB, Camden 2.1927 25.4.1927 5.1927 sold 2.1970
WPC144, 2.1942- WSC144, 5.1966- WMEC144 Legare 337 New York SB, Camden 12.1926 14.2.1927 3.1927 sold 11.1968
WPC145, 2.1942- WSC145 Marion 338 New York SB, Camden 12.1926 15.3.1927 4.1927 sold 3.1963
WPC146, 2.1942- WSC146, 5.1966- WMEC146 McLane 339 New York SB, Camden 12.1926 22.3.1927 4.1927 sold 11.1969
WPC147, 2.1942- WSC147, 5.1966- WMEC147 Morris 341 New York SB, Camden 12.1926 4.4.1927 4.1927 for disposal 8.1970
WPC148, 2.1942- WSC148 Nemaha 342 New York SB, Camden 12.1926 4.4.1927 4.1927 sold 6.1948
WPC149, 2.1942- WSC149 Pulaski 343 New York SB, Camden 12.1926 4.4.1927 4.1927 sold 7.1948
WPC150, 2.1942- WSC150 Reliance 344 New York SB, Camden 2.1927 18.4.1927 4.1927 sold 6.1948
WPC151, 2.1942- WSC151 Rush 345 New York SB, Camden 2.1927 18.4.1927 4.1927 sold 6.1948
WPC152, 2.1942- WSC152 Tiger 346 New York SB, Camden 2.1927 18.4.1927 4.1927 sold 6.1948
WPC153, 2.1942- WSC153 Travis 347 New York SB, Camden 2.1927 18.4.1927 4.1927 sold 11.1962
WPC154, 2.1942- WSC154 Vigilant 348 New York SB, Camden 2.1927 25.4.1927 5.1927 sold 1.1956
WPC155, 2.1942- WSC155 Woodbury 350 New York SB, Camden 2.1927 22.5.1927 6.1927 USN tug 7.1948
WPC156, 2.1942- WSC156, 5.1966- WMEC156 Yeaton 351 New York SB, Camden 2.1927 2.5.1927 5.1927 sold 7.1970
WPC157 Cuyahoga 329 New York SB, Camden 8.1926 27.1.1927 3.1927 // ---- commissioned as miscellaneous auxiliary WIX157


Technical data


Displacement standard, t220
Displacement full, t289
Length, m

36.6 wl 38.1 oa

Breadth, m

7.11

Draught, m

2.13

No of shafts2
Machinery

2 diesels

Power, h. p.600
Max speed, kts

13.3

Fuel, t

diesel oil

Endurance, nm(kts)2500 (12)
Armament

1 x 1 - 76/23 Mk 4.7.11/13/14

Complement

38



Standard scale images


<i>Harriet Lane</i> 1944
Harriet Lane 1944
<i>Agassiz </i>1969<i> </i>
Agassiz 1969


Graphics

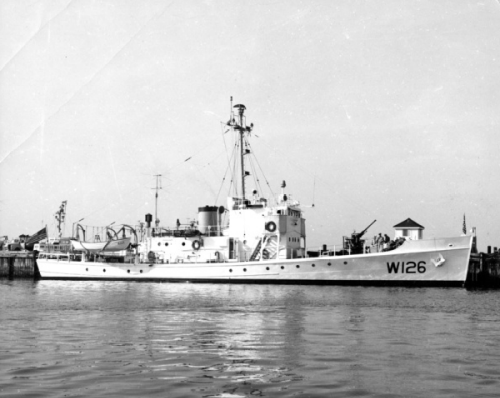

<i>Agassiz</i>
Agassiz

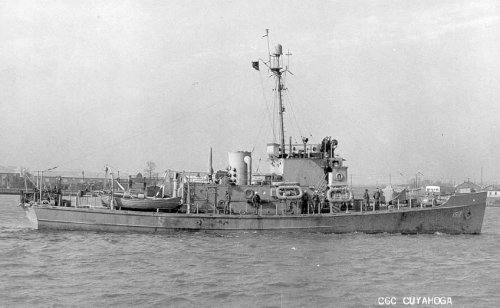

<i>Cuyahoga</i>
Cuyahoga


Project history

Cutters of this class were intended for intercept rum runners during Prohibition. For this purpose they have appeared are of little use because of low speed.

Modernizations

1941, all: + 2 DCR

1942 - 1943, all: + 2 x 1 - 20/70 Mk 4, 2 x 4 - 178 Mousetrap Mk 20 ASWRL

1943 - 1944, many: - 1 x 1 - 76/23; + 1 x 1 - 40/56 Mk 1.2, SO radar

1/1946: 1 x 1 - 40/60 Mk 3, 2 x 1 - 20/70 Mk 10, 2 x 4 - 178 Mousetrap Mk 20 ASWRL, 2 DCR

1960, all survived: were armed with 1 x 1 - 40/60 Mk 3 only, presumably SPN-11 radar

Naval service

Antietam and Jackson were lost 14.9.1944 at Cape Gatteras during a storm.
