VOYAGER coastal patrol craft - interceptor (1973)

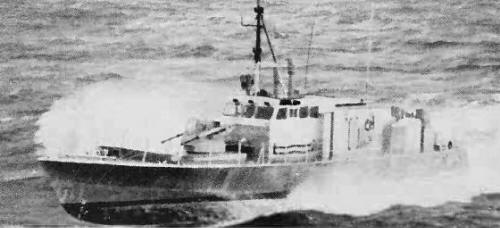

Voyager 1974

Ships


Names Builders Commissioned Losses Transfers Discarding

CPIC1 Voyager

Tacoma Boatbuilders: CPIC1

1973: CPIC1

1980: CPIC1 (2nd time)

CPIC1 (1992)

South Korea, 1974: CPIC1

none



Technical data


Displacement standard, t
Displacement full, t

71

Length, m

30.5

Breadth, m

5.60

Draught, m

1.80

No of shafts

3 waterjets / 2 outboard drive

Machinery

3 Avco-Lycoming TF-25 gas turbines / 2 Volvo auxiliary outboard drive diesels

Power, h. p.

5400 / 300

Max speed, kts

45 /

Fuel, t

gas turbine oil + diesel oil

Endurance, nm(kts)
Armament

1 x 2 - 30/75 Emerlec-30

Electronic equipment

radar

Complement

11 - 15



Graphics


<i>Voyager </i> 1974
Voyager 1974


Project history

Developed as a PTF successor, the Coastal Patrol and Interdiction Craft was built by Tacoma Boatbuilding in 1974 and turned over to the South Korean Navy. She was returned to the United States in 1980 for research. As in the PTFs, there are major weapon positions fore and aft of the bridge structure, as well as pintles for machine-guns along the sides, and guns, missiles, and torpedo tubes can be accommodated. As completed, the CPIC prototype was armed with an Emerson Electric twin 30mm cannon forward.

Modernizations

None.

Naval service

: No significant events.
