DOYEN amphibious personnel transports (1943)





Doyen

Ships


No Name Yard No Builder Laid down Launched Comm Fate
APA1 Doyen 206 Consolidated, Wilmington 1941 9.7.1942 5.1943 for disposal 6.1946
APA11 Feland 207 Consolidated, Wilmington 1941 10.11.1942 6/1943 for disposal 1946


Technical data


Displacement standard, t4351
Displacement full, t

6720

Length, m

123.5 wl 126.3 oa

Breadth, m

17.1

Draught, m

5.64

No of shafts2
Machinery

2 sets Westinghouse geared steam turbines, 2 Babcock & Wilcox boilers

Power, h. p.

8000

Max speed, kts

19

Fuel, t

oil 1772

Endurance, nm(kts)9500(15)
Armament

4 x 1 - 76/50 Mk 20, 2 x 2 - 40/56 Mk 1.2, 10 x 1 - 20/70 Mk 4

Military load14 LCVP, 1 LCPL, 1 LCPR, 400 t of cargo, 845 marines
Electronic equipment

presumably SF or SG or SH or SL or SO radar

Complement472


Graphics

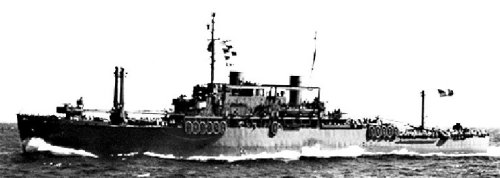

<i>Doyen</i>
Doyen


Project history

USN military transport vessels were sectioned into two groups: АР for transportation of troops and АК for carriage of goods and technics. The majority of them were built on the basis of standard types С2, С3 and С4 and differed from usual cargo ships a little.

For delivery of troops and cargoes directly to a beaching place assault landing transport ships (АРА and АКА) served, which main difference from АК and АР consisted that they were extra equipped with disembarkation craft of LCVP, LCM and LCP (L) types; with their help delivery of people and cargoes to beach also was effected.

Originally similar ships were not outlined in own subclass and were registered as АР and АК. In February, 1943 reorganisation was done and assault transports have received indexation АРА and АКА.

Two ships of Doyen class, projected even on the eve of war for landing operations in Caribbean basin, became the first American assault military transports. The overwhelming majority of remaining АРА and АКА has been converted from merchant cargo and cargo-passenger vessels or constructed in hulls of standard cargo vessels built by the big series in days of war. An exception were specially projected as assault transports Gilliam (АРА) and Artemis (АКА) classes.

Besides the large landing transport ships of АРА and АКА classes, small landing parties and subversive groups were landed by fast landing transports (APD) converted from become outdated Wickes and Clemson classes destroyers and destroyer escorts of Buckley and Rudderow classes.

Doyen and Feland belonged to purpose-built type P1-S2-L2

Modernizations

None.

1/1946: 4 x 1 - 76/50 Mk 20/21, 2 x 2 - 40/60 Mk 1, 10 x 1 - 20/70 Mk 10, SF or SG or SH or SL or SO radar

Naval service

No significant events.
